Husqvarna P524X EFI - 970601601 - Lifting System

Description

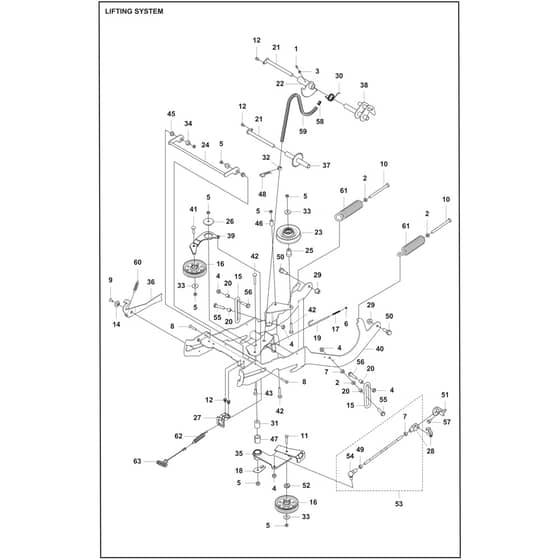

Husqvarna P524X EFI - 970601601 - Lifting System - Parts Diagram

	Part No.	Details
2	HV734 11 72-01 Available to backorder	Washer	£1.98 £1.65
3	HV597 88 76-02 Available to backorder	Washer	£3.43 £2.86
4	HV732 21 20-01 Available to backorder	Lock Nut (M10)	£4.09 £3.41
5	HV732 21 18-01 In stock	Lock Nut (M8)	£2.38 £1.98
6	HV732 21 14-01 Available to backorder	Lock Nut (M5)	£1.55 £1.29
7	HV731 23 20-01 Available to backorder	Hexagon Nut	£3.43 £2.86
8	HV725 64 59-01 Available to backorder	Screw Ihcsfm (M8 X 40)	£3.32 £2.77
9	HV725 64 48-01 Available to backorder	Screw Ihcsfm (M8 X 14)	£2.59 £2.16
10	HV725 25 15-71 Available to backorder	Screw Ehhm (M10 X 120)	£9.62 £8.02
11	HV725 24 59-51 Available to backorder	Screw Ehhm (M8 X 40)	£6.40 £5.33
12	HV725 23 64-61 Available to backorder	Screw Ehhft (M6 X 10)	£2.56 £2.13
14	HV581 76 52-01 Available to backorder	Washer	£3.73 £3.11
15	HV580 71 76-01 Available to backorder	Link	£16.04 £13.37
16	HV577 79 96-01 Available to backorder	Pulley	£37.80 £31.50
17	HV577 66 75-01 Available to backorder	Spring	£4.55 £3.79
18	HV577 66 74-01 Available to backorder	Washer	£8.96 £7.47
19	HV577 66 73-01 Available to backorder	Locking Pin	£13.63 £11.36
20	HV577 40 03-01 Available to backorder	Bushing	£14.94 £12.45
21	HV577 23 84-01 Available to backorder	Shaft Assy	£20.94 £17.45
22	HV577 04 14-01 Available to backorder	Assembly	£190.68 £158.90
23	HV577 00 19-01 Available to backorder	Assembly	£53.45 £44.54
24	HV504 55 78-01 Available to backorder	Hook	£26.28 £21.90
25	HV576 94 64-01 Available to backorder	Bushing	£14.94 £12.45
26	HV576 92 26-01 Available to backorder	Washer	£22.69 £18.91
28	HV506 83 98-02 Available to backorder	Gaffellänk M10X1.5	£21.78 £18.15
29	HV576 64 57-06 Available to backorder	Nut	£1.37 £1.14
30	HV576 47 51-01 Available to backorder	Spring	£16.21 £13.51
31	HV576 35 15-01 Available to backorder	Sleeve	£19.14 £15.95
32	HV544 93 42-01 Available to backorder	Chain Stop	£4.49 £3.74
33	HV544 22 16-01 Available to backorder	Washer	£5.12 £4.27
34	HV544 00 34-01 Available to backorder	Bushing	£17.83 £14.86
38	HV536 50 61-01 Available to backorder	Lifting Lever	£38.98 £32.48
40	HV536 43 83-02 Available to backorder	Equipment Frame	£275.40 £229.50
41	HV535 42 38-04 Available to backorder	Screw Rsqm (M8 X 35)	£5.80 £4.83
42	HV535 42 38-02 Available to backorder	Screw Rsqm (M8 X 55)	£7.06 £5.88
43	HV535 42 38-01 Available to backorder	Screw Rsqm (M8 X 25)	£5.02 £4.18
45	HV506 99 33-02 Available to backorder	Sleeve	£6.49 £5.41
46	HV506 99 20-01 Available to backorder	Pipe	£18.26 £15.22
47	HV506 98 61-01 Available to backorder	Bearing	£7.16 £5.97
48	HV506 96 66-01 Available to backorder	Hair Pin Cotter	£1.15 £0.96
49	HV506 89 76-01 Available to backorder	Nut	£3.59 £2.99
50	HV506 89 58-01 Available to backorder	Collar Screw	£9.12 £7.60
51	HV576 78 73-01 Available to backorder	Bracket	£11.54 £9.62
53	HV576 95 92-02 Available to backorder	Link Arm (Including pos 7. 49. 54)	£28.34 £23.62
54	HV506 78 99-01 Available to backorder	Vinkellänk Din 71802	£11.54 £9.62
55	HV506 67 54-03 Available to backorder	Screw Ehhfm (M10 X 45)	£6.29 £5.24
56	HV506 67 54-02 In stock	Screw Ehhfm (M10 X 40)	£7.49 £6.24
57	HV506 57 01-03 Available to backorder	Screw Ehhfm (M8 X 16)	£5.02 £4.18
58	HV506 55 47-01 In stock	Linkage	£4.86 £4.05
59	HV506 55 46-12 Available to backorder	Chain	£24.25 £20.21
60	HV506 53 56-03 Available to backorder	Draw Spring	£6.00 £5.00
61	HV505 42 09-01 Available to backorder	Spring	£60.90 £50.75
62	HV547 78 38-01 Available to backorder	Spring	£11.77 £9.81
63	HV504 62 21-01 Available to backorder	Handle Assy	£19.88 £16.57
