Husqvarna P524X EFI - 970601601 - Hydraulics 01

Description

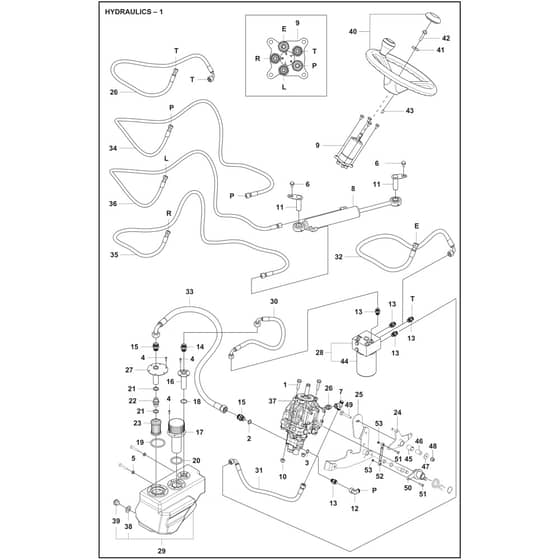

Husqvarna P524X EFI - 970601601 - Hydraulics - Parts Diagram

	Part No.	Details
1	HV506 67 54-02 In stock	Screw Ehhfm (M10 X 40)	£7.49 £6.24
2	HV740 42 17-00 Available to backorder	O-Ring	£3.29 £2.74
3	HV740 42 13-00 Available to backorder	O-Ring	£3.82 £3.18
4	HV502 43 53-01 Available to backorder	Screw Itxpant (T50 X 16)	£1.44 £1.20
5	HV734 11 64-01 Available to backorder	Washer (BRB 8.4x17)	£2.29 £1.91
6	HV506 57 01-03 Available to backorder	Screw Ehhfm (M8 X 16)	£5.02 £4.18
7	HV597 94 85-01 Available to backorder	Connection	£23.63 £19.69
8	HV595 31 96-01 Available to backorder	Hydraulic Cylinder (Steering cylinder)	£316.68 £263.90
9	HV589 65 12-01 Available to backorder	Power Steering	£302.66 £252.22
10	HV576 64 57-05 Available to backorder	Nut Flange (M10)	£4.36 £3.63
11	HV576 28 64-01 Available to backorder	Shaft Assy	£40.88 £34.07
12	HV575 88 15-03 Available to backorder	Connector	£19.76 £16.47
13	HV575 88 13-04 Available to backorder	Connector	£10.76 £8.97
14	HV575 88 13-03 Available to backorder	Connector	£13.63 £11.36
15	HV575 88 13-01 Available to backorder	Connector	£12.32 £10.27
16	HV575 87 09-02 Available to backorder	Pipe	£23.63 £19.69
17	HV544 17 64-01 Available to backorder	Tank Cap	£159.24 £132.70
18	HV544 04 65-06 Available to backorder	O-Ring	£1.45 £1.21
19	HV544 04 65-05 Available to backorder	O-Ring	£3.95 £3.29
20	HV544 04 65-03 Available to backorder	O-Ring	£3.95 £3.29
21	HV544 01 00-01 Available to backorder	Gasket	£5.03 £4.19
22	HV544 00 97-01 Available to backorder	Pipe Fitting	£17.02 £14.18
23	HV544 00 19-01 Available to backorder	Oil Filter (Pump suction)	£33.06 £27.55
26	HV537 49 28-01 Available to backorder	Hydraulic Hose	£56.46 £47.05
27	HV537 47 35-01 Available to backorder	Pipe Assy	£21.85 £18.21
28	HV536 76 85-01 Available to backorder	Filter Holder Assy (Including pos 44)	£202.80 £169.00
29	HV536 59 88-01 Available to backorder	Hydraulic Tank Assy (Including pos 38.39)	£340.32 £283.60
30	HV536 47 53-01 Available to backorder	Hydraulic Hose	£56.46 £47.05
31	HV536 47 52-01 Available to backorder	Hydraulic Hose	£56.46 £47.05
32	HV536 47 49-01 Available to backorder	Hydraulic Hose	£56.46 £47.05
33	HV536 47 45-01 Available to backorder	Hydraulic Hose	£56.46 £47.05
34	HV536 47 44-01 Available to backorder	Hydraulic Hose	£56.46 £47.05
35	HV536 47 43-01 Available to backorder	Hydraulic Hose	£56.46 £47.05
36	HV536 47 42-01 Available to backorder	Hydraulic Hose	£56.46 £47.05
37	HV575 88 69-01 Available to backorder	Hydraulic Pump	£1,354.19 £1,128.49
38	HV522 47 13-01 Available to backorder	Washer	£2.30 £1.92
39	HV522 47 12-01 Available to backorder	Oil Plug	£8.36 £6.97
40	HV544 29 14-01 Available to backorder	Steering Wheel	£99.12 £82.60
41	HV544 22 16-01 Available to backorder	Washer (8.4x29x3)	£5.12 £4.27
42	HV506 57 01-06 Available to backorder	Screw Ehhfm (M8 X 35)	£6.29 £5.24
43	HV735 88 12-00 Available to backorder	Woodruff Key	£3.97 £3.31
44	HV597 46 43-01 Available to backorder	Oil Filter	£70.32 £58.60
45	HV506 98 61-03 Available to backorder	Bushing	£7.06 £5.88
46	HV506 99 20-01 Available to backorder	Pipe	£18.26 £15.22
47	HV734 11 64-41 In stock	Washer (8.4x25X2)	£3.25 £2.71
48	HV576 64 57-04 Available to backorder	Nut (M8)	£2.96 £2.47
49	HV535 42 38-02 Available to backorder	Screw Rsqm (M8x55)	£7.06 £5.88
51	HV535 47 52-30 Available to backorder	Screw Ehhfm (M6x30)	£2.36 £1.97
53	HV576 64 57-03 Available to backorder	Nut (M6)	£2.30 £1.92
