Husqvarna P524X EFI - 970601601 - Chassis 01

Name: Husqvarna P524X EFI - 970601601 - Chassis 01
SKU: P524X_EFI_970601601_XX_363983_HighResPng-group
Price: 1.07 GBP
Availability: InStock

Part No. P524X_EFI_970601601_XX_363983_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna P524X EFI - 970601601 - Chassis 01

Description

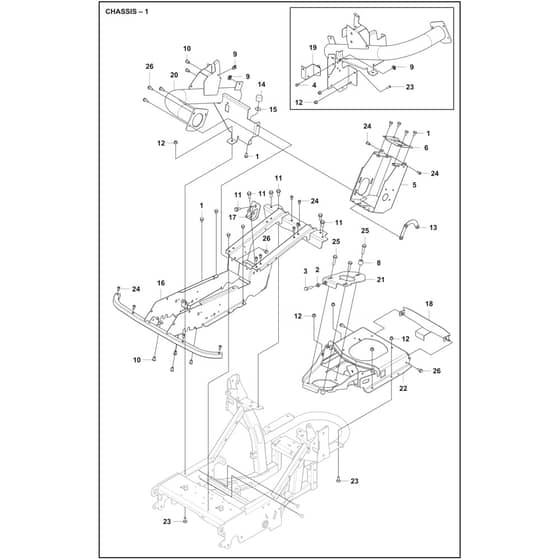

Husqvarna P524X EFI - 970601601 - Chassis - Parts Diagram

	Part No.	Details
1	HV506 57 01-03 Available to backorder	Screw Ehhfm (M8 X 16)	£5.02 £4.18
2	HV731 23 20-01 Available to backorder	Hexagon Nut (M10)	£3.43 £2.86
3	HV725 25 02-71 Available to backorder	Screw Ehhm (M10 X 55)	£7.70 £6.42
4	HV725 23 68-61 Available to backorder	Screw Ehhft (M6 X 16)	£3.59 £2.99
5	HV599 58 41-01 Available to backorder	Bracket	£131.28 £109.40
6	HV597 49 60-01 Available to backorder	Bracket	£17.71 £14.76
8	HV577 76 14-01 Available to backorder	Sleeve	£12.97 £10.81
9	HV535 42 91-01 Available to backorder	Spring Nut (M6 SPRING)	£1.28 £1.07
10	HV506 91 62-01 Available to backorder	Nut (M8)	£6.01 £5.01
11	HV506 67 54-01 Available to backorder	Screw Ehhfm (M10 X 25)	£7.06 £5.88
12	HV576 64 57-04 Available to backorder	Nut (M8)	£2.96 £2.47
13	HV576 44 43-01 Available to backorder	Sheet	£7.40 £6.17
14	HV544 25 21-02 Available to backorder	Antivibration Element	£16.38 £13.65
15	HV544 22 16-01 Available to backorder	Washer	£5.12 £4.27
16	HV536 35 11-01 Available to backorder	Frame Assy	£326.76 £272.30
17	HV536 58 08-01 Available to backorder	Bracket	£22.45 £18.71
18	HV536 56 57-01 Available to backorder	Protection Assy	£45.48 £37.90
19	HV536 46 78-01 Available to backorder	Bracket	£15.35 £12.79
20	HV536 46 14-01 Available to backorder	Steering Column Tube	£223.44 £186.20
21	HV536 37 25-01 Available to backorder	Bracket	£53.74 £44.78
22	HV536 25 57-01 Available to backorder	Bracket	£71.40 £59.50
23	HV535 42 38-01 Available to backorder	Screw Rsqm (M8 X 25)	£5.02 £4.18
24	HV506 91 62-04 Available to backorder	Nut (M6 X 16.5)	£5.38 £4.48
25	HV506 67 54-02 In stock	Screw Ehhfm (M10 X 40)	£7.49 £6.24
26	HV506 57 01-04 Available to backorder	Screw Ehhfm (M8 X 20)	£5.02 £4.18
