Husqvarna P524X - 970601501 - Engine

Name: Husqvarna P524X - 970601501 - Engine
SKU: P524X_970601501_FA_700823_HighResPng-group
Price: 0.69 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

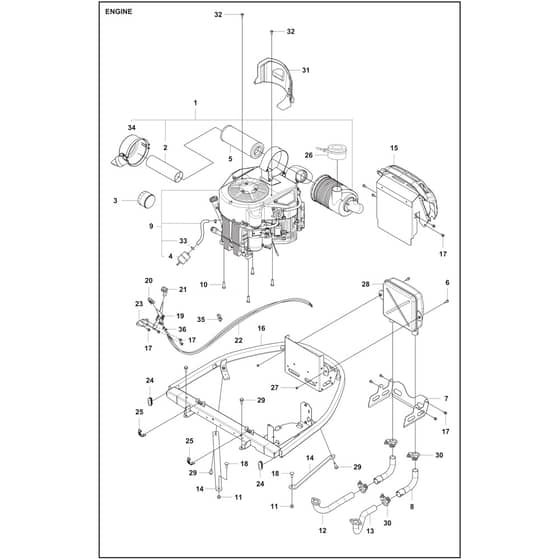

Husqvarna P524X - 970601501 - Engine - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV585 40 80-02 Available to backorder	Prefilter	£61.92 £51.60
3	HV578 15 92-01 In stock	Oil Filter	£24.48 £20.40
4	HV595 92 73-01 Available to backorder	Fuel Filter	£17.78 £14.82
5	HV585 40 80-01 Available to backorder	Air Filter	£52.64 £43.87
6	HV585 98 06-01 Available to backorder	Screw Ehhfm (M6 X 16)	£4.92 £4.10
7	HV593 59 01-01 Available to backorder	Heat Protector	£47.22 £39.35
8	HV590 75 46-01 Available to backorder	Exhaust Pipe	£15.36 £12.80
10	HV577 09 48-01 Available to backorder	Screw (3.8-16UNC X 1.25)	£6.46 £5.38
11	HV576 64 57-04 Available to backorder	Nut (M8)	£2.96 £2.47
12	HV536 45 94-02 Available to backorder	Manifold (Right)	£21.28 £17.73
13	HV536 45 94-01 Available to backorder	Manifold (Left)	£21.85 £18.21
14	HV536 45 75-01 Available to backorder	Support	£17.71 £14.76
15	HV536 44 06-01 Available to backorder	Heat Protector	£231.50 £192.92
16	HV536 43 42-02 Available to backorder	Engine Frame	£263.08 £219.23
17	HV535 47 52-12 Available to backorder	Screw Ehhfm (M6 X 12)	£3.62 £3.02
18	HV535 42 38-01 Available to backorder	Screw Rsqm (M8 X 25)	£5.04 £4.20
19	HV590 43 11-01 Available to backorder	Throttle Control (Throttle.Choke control)	£20.48 £17.07
21	HV592 93 34-02 Available to backorder	Knob (Red)	£5.68 £4.73
22	HV544 30 17-05 Available to backorder	Wire (Throttle.Choke)	£41.40 £34.50
23	HV536 84 84-01 Available to backorder	Adapter	£8.86 £7.38
24	HV504 64 36-01 Available to backorder	Plug	£4.26 £3.55
25	HV588 46 28-03 In stock	Snap Locking	£4.45 £3.71
26	HV546 05 63-01 Available to backorder	Sealing (Without strap)	£42.53 £35.44
27	HV731 23 16-01 Available to backorder	Hexagon Nut (M6)	£1.50 £1.25
28	HV590 75 38-01 Available to backorder	Muffler Assy	£284.34 £236.95
29	HV506 57 01-05 Available to backorder	Screw Ehhfm (M8 X 25)	£1.01 £0.84
30	HV501 15 22-01 In stock	Clamp Assy	£1.82 £1.52
31	HV538 96 18-01 Available to backorder	Air Conductor	£57.88 £48.23
32	HV574 85 62-02 Available to backorder	Screw (M6 X 21)	£3.12 £2.60
33	HV535 46 97-01 Available to backorder	Hose Brace	£0.83 £0.69
34	HV579 15 65-01 Available to backorder	Air Cleaner	£41.40 £34.50
35	HV579 31 74-01 Available to backorder	Strap	£1.04 £0.87
36	HV740 48 07-02 Available to backorder	O-Ring	£3.84 £3.20
