Husqvarna P524EFI

Model Year -

Controls - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV732 25 16-01 Available to backorder	Hexagon Locking Nut	£2.06 £1.72
2	HV734 11 64-41 Available to backorder	Washer	£3.28 £2.73
4	HV506 57 01-06 Available to backorder	Screw Ehhfm	£6.34 £5.28
5	HV731 23 18-01 Available to backorder	Hexagon Nut	£3.24 £2.70
6	HV581 78 48-02 Available to backorder	Linkage	£40.12 £33.43
7	HV506 99 20-01 Available to backorder	Pipe	£18.12 £15.10
8	HV506 98 61-03 Available to backorder	Bushing	£7.12 £5.93
10	HV506 57 01-04 Available to backorder	Screw Ehhfm	£5.04 £4.20
12	HV735 31 09-20 Available to backorder	E-Clip	£0.77 £0.64
13	HV732 21 16-01 Available to backorder	Lock Nut	£1.82 £1.52
14	HV725 23 64-61 Available to backorder	Screw Ehhft	£2.58 £2.15

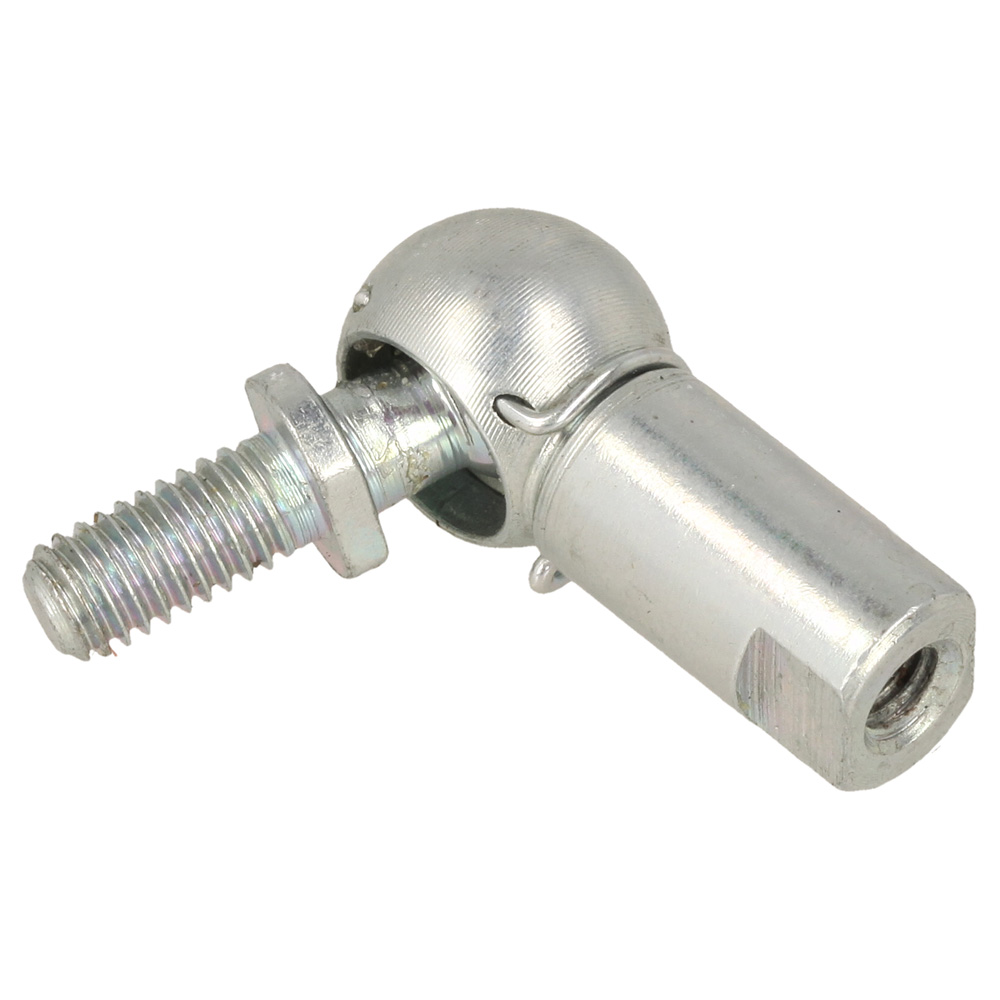

15	HV578 77 68-01 Available to backorder	Ball Joint	£11.64 £9.70
16	HV738 21 02-04 Available to backorder	Ball Bearing	£7.12 £5.93
18	HV535 47 52-12 Available to backorder	Screw Ehhfm	£3.62 £3.02
19	HV731 23 14-01 Available to backorder	Hexagon Nut	£1.51 £1.26
20	HV535 42 38-02 Available to backorder	Screw Rsqm	£7.12 £5.93
23	HV587 25 74-01 Available to backorder	Pedal Plate Assy	£163.04 £135.87
27	HV504 63 90-01 Available to backorder	Spring	£4.26 £3.55
29	HV506 94 63-01 Available to backorder	Brake Spring	£10.08 £8.40

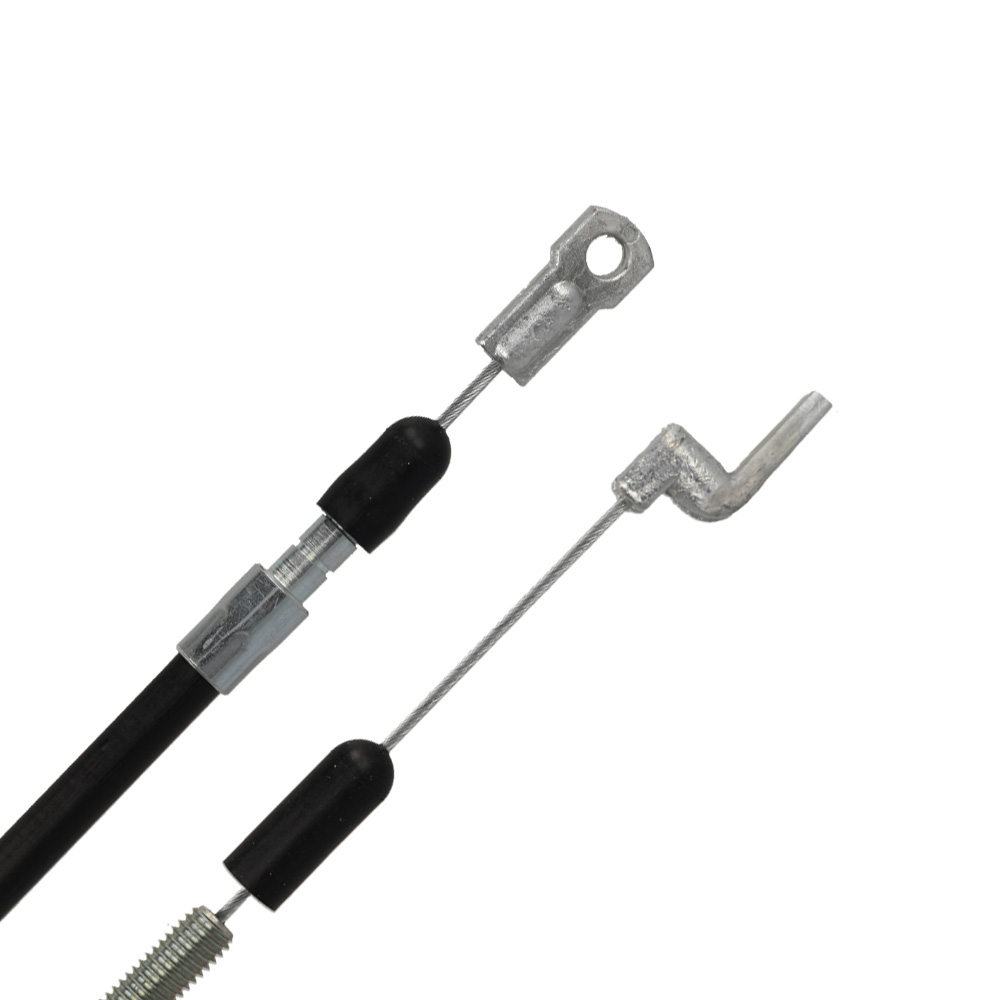

30	HV576 83 06-01 Available to backorder	Brake Wire	£61.46 £51.22
33	HV522 43 08-01 Available to backorder	Bracket	£8.40 £7.00
34	HV577 09 52-01 Available to backorder	Bracket	£11.80 £9.83
35	HV544 44 19-02 Available to backorder	Adjustment Rod	£29.46 £24.55
37	HV506 93 83-01 Available to backorder	Damping Piece	£77.36 £64.47
