Husqvarna P524EFI - Chassis & Frame

Name: Husqvarna P524EFI - Chassis & Frame
SKU: p524efi_chassis_frame-group
Price: 1.39 GBP
Availability: InStock

Part No. p524efi_chassis_frame-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna P524EFI

Model Year -

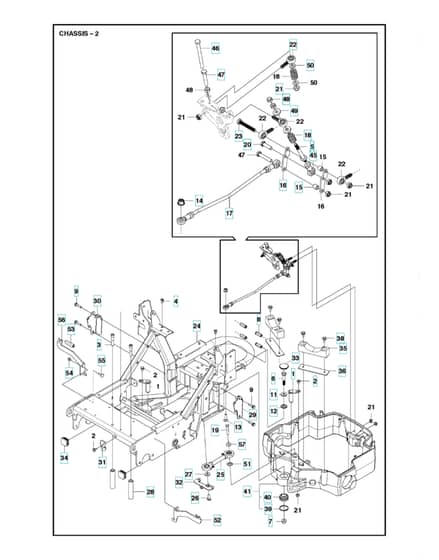

Chassis & Frame - Parts Diagram

	Part No.	Details
1	HV576 28 64-01 Available to backorder	Shaft Assy	£40.88 £34.07
2	HV506 57 01-03 Available to backorder	Screw Ehhfm	£5.02 £4.18
4	HV506 91 62-01 Available to backorder	Nut	£6.01 £5.01
5	HV585 44 84-01 Available to backorder	Control Shaftfine Threads	£9.62 £8.02
5	HV577 39 08-01 Available to backorder	Control Shaftnormal Threads	£35.66 £29.72
7	HV732 25 22-01 Available to backorder	Hexagon Locking Nut	£4.84 £4.03
9	HV506 57 01-04 Available to backorder	Screw Ehhfm	£5.02 £4.18
11	HV577 61 45-01 Available to backorder	Washer	£6.14 £5.12
12	HV577 61 46-01 Available to backorder	Fixing Washer	£5.46 £4.55
13	HV727 64 99-51 Available to backorder	Screw	£7.70 £6.42
17	HV577 38 86-01 Available to backorder	Pull Rod	£107.88 £89.90
20	HV725 24 97-51 Available to backorder	Screw	£7.06 £5.88
21	HV576 64 57-05 Available to backorder	Nut Flange	£4.36 £3.63
23	HV577 37 67-01 Available to backorder	Screw Ehhm	£1.67 £1.39
24	HV593 04 74-01 Available to backorder	Frame	£890.10 £741.75
25	HV576 11 00-01 Available to backorder	Link Rods	£117.60 £98.00
26	HV506 67 54-01 Available to backorder	Screw Ehhfm	£7.06 £5.88
31	HV576 78 73-01 Available to backorder	Bracket	£11.54 £9.62
32	HV586 12 09-01 Available to backorder	Locking Plate	£16.66 £13.88
33	HV581 82 83-01 Available to backorder	Dust Cover	£14.10 £11.75
35	HV585 56 30-01 Available to backorder	Wear Plate	£30.76 £25.63
36	HV576 47 42-01 Available to backorder	Plate	£7.14 £5.95
38	HV544 36 24-01 Available to backorder	Screw	£6.64 £5.53
39	HV576 46 80-01 Available to backorder	Lock Ring	£8.45 £7.04
40	HV576 27 17-01 Available to backorder	Bearing	£10.51 £8.76
45	HV506 95 17-01 Available to backorder	Rod End	£19.21 £16.01
46	HV725 25 13-51 Available to backorder	Screw Ehhm	£9.96 £8.30
47	HV725 25 02-71 Available to backorder	Screw Ehhm	£7.70 £6.42
48	HV586 05 01-01 Available to backorder	Nutfine Threads	£3.91 £3.26
50	HV734 11 72-01 Available to backorder	Washer	£1.98 £1.65
51	HV583 86 12-01 Available to backorder	Washer	£2.56 £2.13
55	HV535 42 38-01 Available to backorder	Screw Rsqm	£5.02 £4.18
56	HV577 92 84-02 Available to backorder	Deflection Limiter	£26.83 £22.36
57	HV578 24 64-01 Available to backorder	Sleeve	£9.97 £8.31
