Husqvarna P 525DX WITH CABIN - Fuel System

Husqvarna P 525DX WITH CABIN - Fuel System

Part No. p_525dx_with_cabin_fuel_system-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna P 525DX WITH CABIN - Fuel System

Husqvarna P 525DX WITH CABIN - Fuel System

Description

Husqvarna P 525DX WITH CABIN

Model Year -

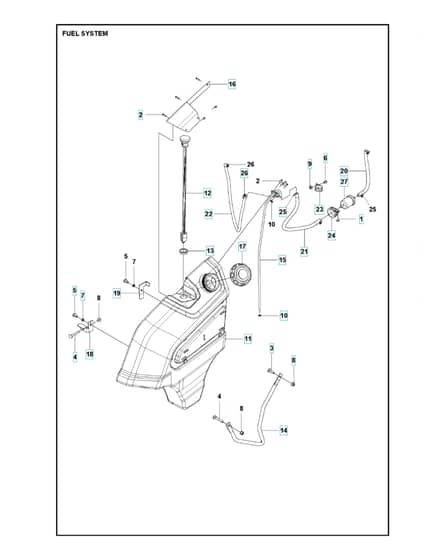

Fuel System - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV535 47 52-12 Available to backorder	Screw Ehhfm		£3.59 £2.99
	2		HV502 43 53-01 Available to backorder	Screw Itxpant		£1.44 £1.20
	3		HV535 42 38-05 Available to backorder	Screw Rsqm		£5.24 £4.37
	4		HV535 42 38-02 Available to backorder	Screw Rsqm		£7.06 £5.88
	5		HV506 57 01-03 Available to backorder	Screw Ehhfm		£5.02 £4.18
	6		HV725 23 64-61 Available to backorder	Screw Ehhft		£2.56 £2.13
	7		HV503 23 04-03 Available to backorder	Washer		£2.86 £2.38
	10		HV740 48 12-02 Available to backorder	O-Ring		£3.82 £3.18
	14		HV579 57 01-01 Available to backorder	Tube		£28.84 £24.03
	24		HV574 53 12-02 Available to backorder	Hose Clamp		£2.69 £2.24
	25		HV544 28 26-01 Available to backorder	Hose Clamp		£1.48 £1.23
	27		HV576 95 55-01 In stock	Prefilter		£6.90 £5.75

Description

Husqvarna P 525DX WITH CABIN

Model Year -

Fuel System - Parts Diagram
