Husqvarna P 525DX WITH CABIN - Chassis & Frame

Description

Husqvarna P 525DX WITH CABIN

Model Year -

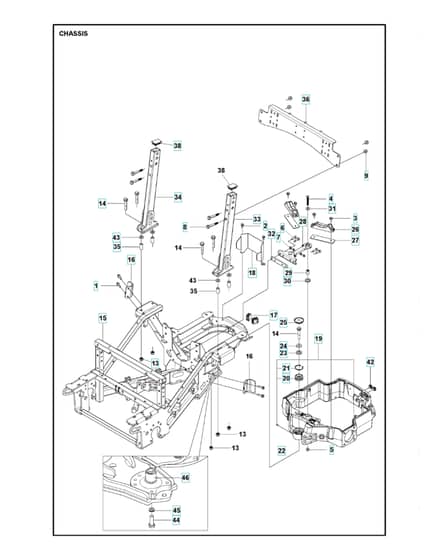

Chassis & Frame - Parts Diagram

	Part No.	Details
2	HV506 57 01-04 Available to backorder	Screw Ehhfm	£5.02 £4.18
3	HV544 36 24-01 Available to backorder	Screw	£6.64 £5.53
4	HV577 37 67-01 Available to backorder	Screw Ehhm	£1.67 £1.39
5	HV576 64 57-05 Available to backorder	Nut Flange	£4.36 £3.63
6	HV502 23 36-01 Available to backorder	Screw Ihscm	£7.06 £5.88
7	HV734 11 72-01 Available to backorder	Washer	£1.98 £1.65
8	HV576 65 48-09 Available to backorder	Screw Ehhfm	£7.06 £5.88
16	HV579 62 23-01 Available to backorder	Contact Plate	£26.92 £22.43
22	HV738 88 10-01 Available to backorder	Lubrication Nipple	£11.09 £9.24
26	HV585 56 30-01 Available to backorder	Wear Plate	£30.76 £25.63
27	HV576 47 42-01 Available to backorder	Plate	£7.14 £5.95
29	HV583 85 47-01 Available to backorder	Shaft Pivot	£13.63 £11.36
30	HV583 86 12-01 Available to backorder	Washer	£2.56 £2.13
31	HV578 24 64-01 Available to backorder	Sleeve	£9.97 £8.31
36	HV577 40 61-01 Available to backorder	Stiffening Plate	£135.00 £112.50
42	HV580 64 31-01 Available to backorder	Insert	£4.50 £3.75
45	HV522 44 98-01 Available to backorder	Washer	£2.30 £1.92
