Husqvarna P 525D - Steering Column 2

Name: Husqvarna P 525D - Steering Column 2
SKU: p_525d_steering_column_2-group
Price: 1.07 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna P 525D

Model Year -

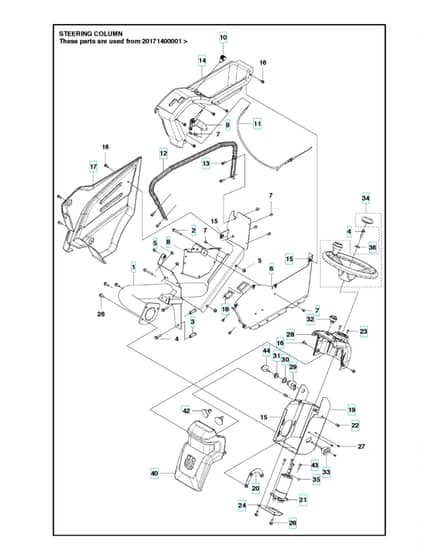

Steering Column 2 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV579 61 34-01 Available to backorder	Console	£225.72 £188.10
2	HV506 57 01-07 Available to backorder	Screw Ehhfm	£7.12 £5.93
4	HV506 57 01-06 Available to backorder	Screw Ehhfm	£6.34 £5.28
7	HV725 23 64-61 Available to backorder	Screw Ehhft	£2.58 £2.15
9	HV576 80 68-01 Available to backorder	Throttle Control	£21.62 £18.02
10	HV506 88 91-01 Available to backorder	Knob	£6.08 £5.07
11	HV576 65 65-01 Available to backorder	Wire	£30.82 £25.68
12	HV575 88 29-01 Available to backorder	Handle	£48.46 £40.38
13	HV725 54 51-01 Available to backorder	Screw Ihscm	£2.46 £2.05
14	HV577 48 80-01 Available to backorder	Panel	£257.16 £214.30
15	HV535 42 91-01 Available to backorder	Spring Nut	£1.28 £1.07
16	HV574 85 62-02 Available to backorder	Screw	£3.12 £2.60
19	HV582 05 64-01 Available to backorder	Bracket	£153.98 £128.32
21	HV589 65 12-01 Available to backorder	Power Steering	£351.60 £293.00
23	HV522 55 73-01 Available to backorder	Screw	£2.58 £2.15
26	HV506 57 01-04 Available to backorder	Screw Ehhfm	£5.04 £4.20
29	HV504 85 17-01 Available to backorder	Key Switchincluding Key And Washer	£57.76 £48.13
30	HV535 47 50-01 Available to backorder	Washer	£2.58 £2.15
32	HV502 65 57-01 Available to backorder	Switchlight Switch	£39.60 £33.00
34	HV544 29 14-01 Available to backorder	Steering Wheel	£103.52 £86.27
35	HV735 88 12-00 Available to backorder	Woodruff Key	£4.02 £3.35
36	HV544 22 16-01 Available to backorder	Washer	£5.18 £4.32
42	HV582 21 42-01 Available to backorder	Lampled	£12.06 £10.05
43	HV725 54 49-01 Available to backorder	Screw Ihscm	£2.94 £2.45
44	HV535 47 60-01 Available to backorder	Ignition Key	£10.48 £8.73
