Husqvarna P 525D - Fuel System

Name: Husqvarna P 525D - Fuel System
SKU: p_525d_fuel_system-group
Price: 1.23 GBP
Availability: InStock

Part No. p_525d_fuel_system-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna P 525D

Model Year -

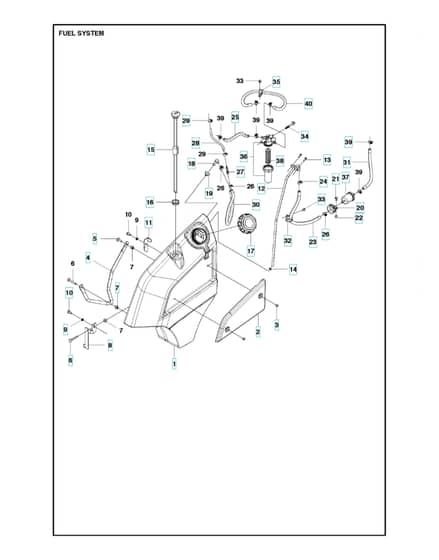

Fuel System - Parts Diagram

	Part No.	Details
1	HV575 71 87-01 Available to backorder	Fuel Tank	£344.40 £287.00
3	HV535 42 58-01 Available to backorder	Screw Ihpanm	£2.05 £1.71
4	HV579 57 01-01 Available to backorder	Tube	£28.84 £24.03
5	HV535 42 38-01 Available to backorder	Screw Rsqm	£5.02 £4.18
6	HV535 42 38-02 Available to backorder	Screw Rsqm	£7.06 £5.88
9	HV503 23 04-03 Available to backorder	Washer	£2.86 £2.38
10	HV506 57 01-03 Available to backorder	Screw Ehhfm	£5.02 £4.18
13	HV535 41 56-19 Available to backorder	Screw	£2.05 £1.71
14	HV740 48 12-02 Available to backorder	O-Ring	£3.82 £3.18

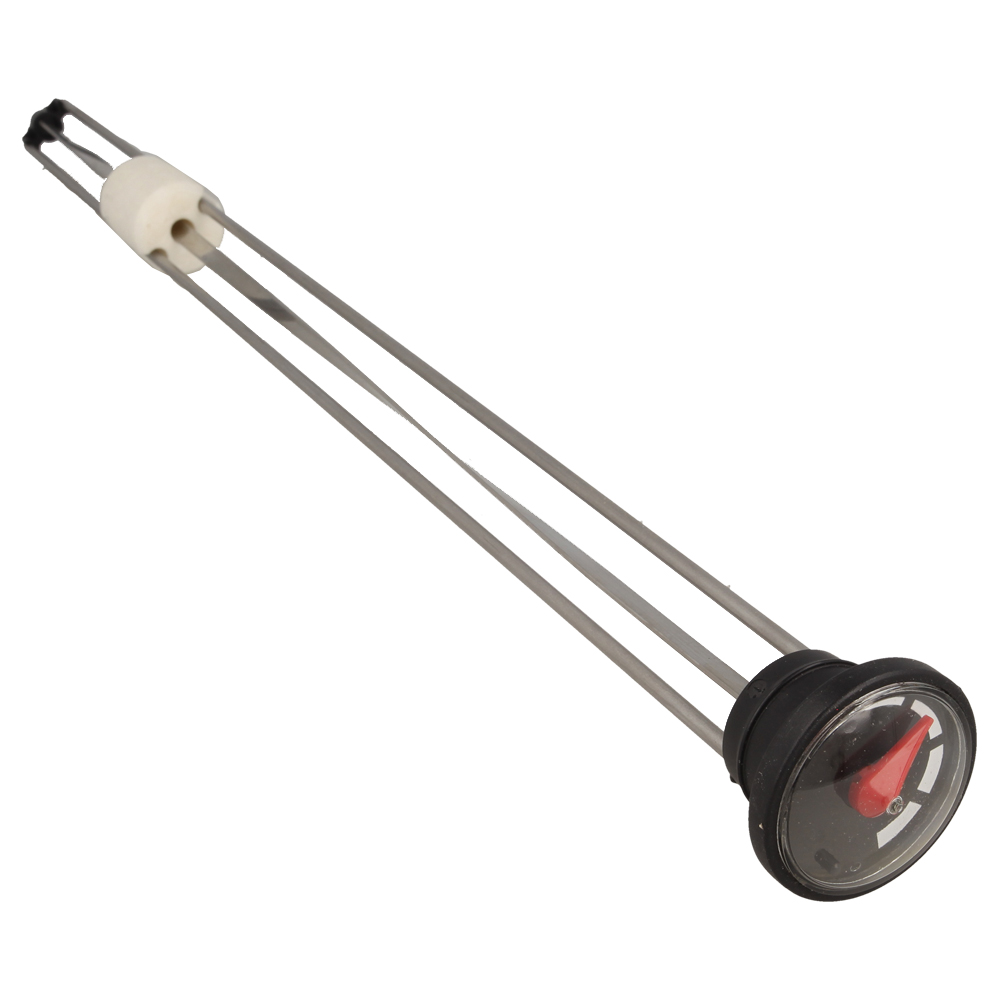

15	HV575 96 14-01 Available to backorder	Gauge	£64.56 £53.80

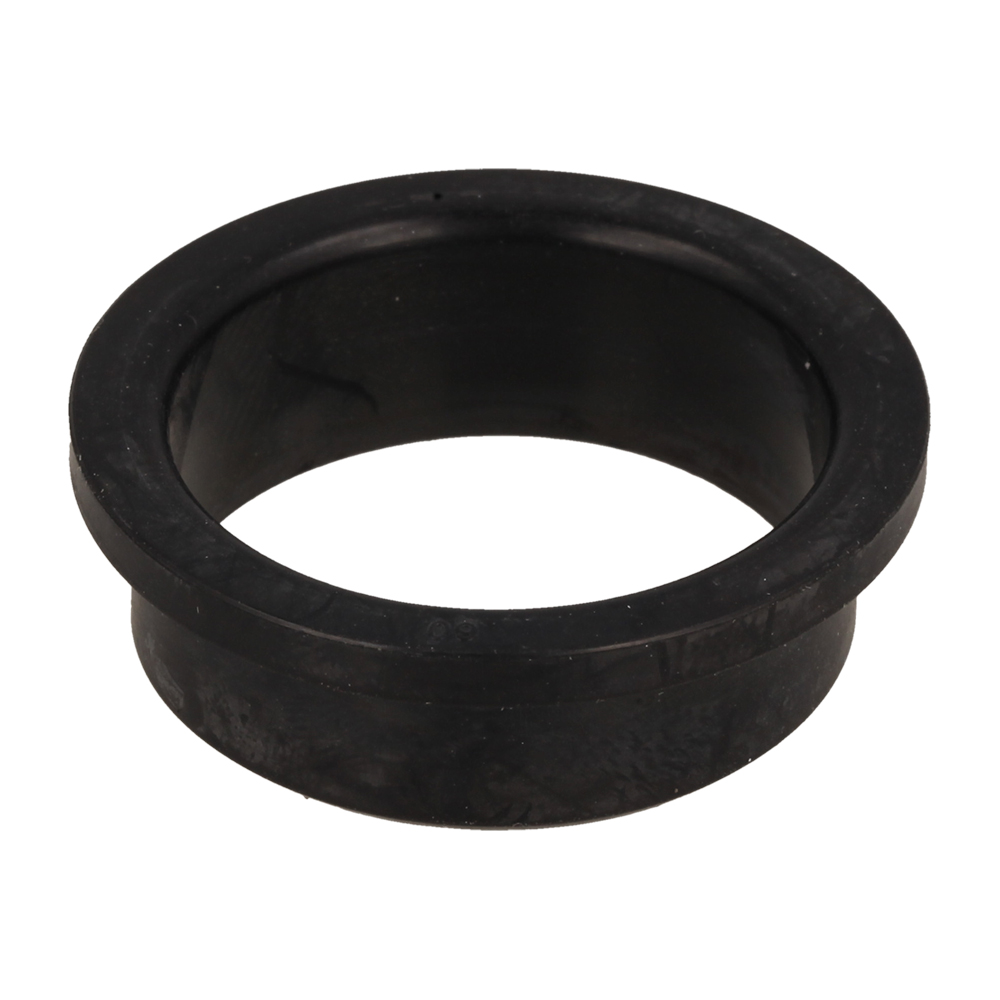

16	HV594 05 95-01 Available to backorder	Grommet	£6.77 £5.64
18	HV539 10 52-44 Available to backorder	Joint	£12.18 £10.15
20	HV574 53 12-02 Available to backorder	Hose Clamp	£2.69 £2.24
21	HV725 23 68-61 Available to backorder	Screw Ehhft	£3.59 £2.99
23	HV544 28 25-10 Available to backorder	Fuel Hose	£20.17 £16.81
25	HV585 51 05-01 Available to backorder	Fuel Hose	£17.32 £14.43
26	HV544 28 26-01 Available to backorder	Hose Clamp	£1.48 £1.23
31	HV585 51 05-02 Available to backorder	Fuel Hose	£18.02 £15.02
33	HV725 23 64-61 Available to backorder	Screw Ehhft	£2.56 £2.13
34	HV506 57 01-08 Available to backorder	Screw Ehhfm	£1.79 £1.49
36	HV576 95 57-01 Available to backorder	Fuel Filter	£51.53 £42.94
37	HV576 95 55-01 In stock	Prefilter	£6.90 £5.75
38	HV578 01 01-01 Available to backorder	Filter	£12.94 £10.78
39	HV544 28 26-05 Available to backorder	Hose Clamp	£1.79 £1.49
40	HV585 51 05-04 Available to backorder	Fuel Hose	£18.96 £15.80
