Husqvarna P 524 - 44" 112cm Cutting Deck

Name: Husqvarna P 524 - 44" 112cm Cutting Deck
SKU: p_524_44_112cm_cutting_deck-group
Price: 1.95 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna P 524 - 44" 112cm Cutting Deck

Description

Husqvarna P 524

Model Year -

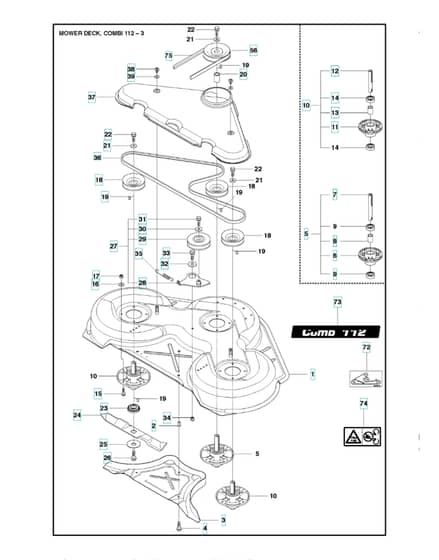

44" 112cm Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV504 56 99-01 Available to backorder	Deck Shell Assy	£666.00 £555.00
2	HV506 91 62-01 Available to backorder	Nut	£6.08 £5.07
3	HV544 44 93-01 Available to backorder	Plug	£126.76 £105.63
4	HV506 57 01-04 Available to backorder	Screw Ehhfm	£5.04 £4.20
5	HV576 89 90-01 Available to backorder	Blade Housing Assy	£169.46 £141.22
7	HV576 86 58-01 Available to backorder	Shaftfor 967847901. 967722801. 967292201. & 966607201 - 2014	£51.12 £42.60
7	HV535 42 87-01 Available to backorder	Shaftfor 966607201 - 2013. 966607201 - 2011	£40.00 £33.33
10	HV576 89 90-02 In stock	Blade Housing Assy	£147.76 £123.13
11	HV576 38 42-01 Available to backorder	Bearing Housing	£76.60 £63.83
12	HV535 42 87-02 Available to backorder	Shaftfor 966607201 - 2013. 966607201 - 2011	£69.82 £58.18
12	HV576 86 58-02 Available to backorder	Shaftfor 967847901. 967722801. 967292201. & 966607201 - 2014	£34.56 £28.80
13	HV576 89 82-01 Available to backorder	Spacing Sleevefor 967847901. 967722801. 967292201. & 966607201 - 2014	£22.00 £18.33
14	HV738 22 05-19 Available to backorder	Ball Bearing	£9.96 £8.30
15	HV535 42 38-01 Available to backorder	Screw Rsqm	£5.04 £4.20
16	HV734 11 64-01 Available to backorder	Washer	£2.34 £1.95
18	HV535 42 90-01 Available to backorder	Pulley	£81.34 £67.78
19	HV506 53 35-01 Available to backorder	Parallel Key	£4.54 £3.78
20	HV535 42 88-01 Available to backorder	Spacerfor 966607201 - 2013. 966607201 - 2011	£9.06 £7.55
21	HV535 42 92-01 Available to backorder	Washer	£9.72 £8.10
23	HV535 50 42-01 Available to backorder	Adapter	£19.40 £16.17
24	HV544 10 27-10 Available to backorder	Blade	£44.28 £36.90
25	HV588 14 56-02 Available to backorder	Plate	£14.88 £12.40
26	HV725 25 42-51 Available to backorder	Screw Ehhm	£9.06 £7.55
27	HV586 40 05-01 Available to backorder	Belt Tensioner Assy	£42.04 £35.03
28	HV581 92 81-01 Available to backorder	Armnew 50 mm	£33.64 £28.03
29	HV506 53 27-01 Available to backorder	Pulley	£58.54 £48.78
30	HV734 11 64-41 Available to backorder	Washer	£3.28 £2.73
31	HV506 55 83-02 Available to backorder	Screw Ehhft	£3.62 £3.02
32	HV576 92 26-01 Available to backorder	Washernew 50 mm	£22.94 £19.12
33	HV725 24 53-71 Available to backorder	Screw Ehhm	£4.54 £3.78
34	HV732 21 18-01 Available to backorder	Lock Nut	£2.40 £2.00
35	HV506 53 31-01 Available to backorder	Spring	£12.04 £10.03
36	HV593 80 64-01 In stock	Belt	£67.92 £56.60
37	HV544 09 62-01 Available to backorder	Belt Cover	£61.46 £51.22
38	HV506 98 26-01 Available to backorder	Screw	£2.58 £2.15
39	HV506 55 97-01 Available to backorder	Washer	£2.34 £1.95
56	HV544 25 56-01 Available to backorder	Pulley	£48.94 £40.78
72	HV506 78 97-01 Available to backorder	Label	£5.04 £4.20
73	HV544 23 81-05 Available to backorder	Label	£3.76 £3.13
74	HV574 51 00-01 Available to backorder	Decal	£3.12 £2.60
75	HV589 53 90-01 Available to backorder	Beltfor 967722801. 967292201. 966607201	£129.58 £107.98
