Husqvarna P 520D WITH CABIN - Hydraulics

Description

Husqvarna P 520D WITH CABIN

Model Year -

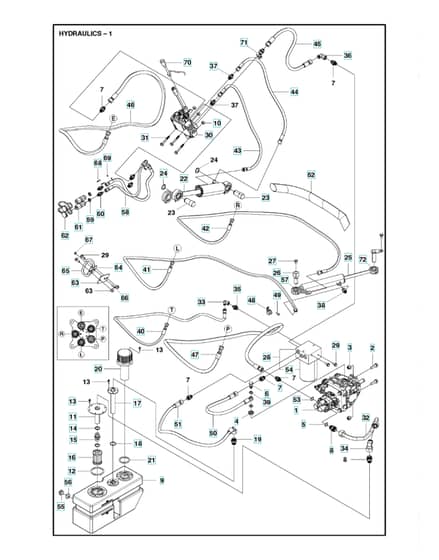

Hydraulics - Parts Diagram

	Part No.	Details
1	HV575 88 69-01 Available to backorder	Hydraulic Pump	£1,354.19 £1,128.49
3	HV576 64 57-05 Available to backorder	Nut Flange	£4.36 £3.63
5	HV740 42 17-00 Available to backorder	O-Ring	£3.29 £2.74
8	HV575 88 13-01 Available to backorder	Connector	£12.32 £10.27
9	HV576 95 96-01 Available to backorder	Hydraulic Tank Assy	£124.20 £103.50
12	HV544 04 65-05 Available to backorder	O-Ring	£3.95 £3.29
13	HV535 41 56-19 Available to backorder	Screw	£2.05 £1.71
14	HV544 01 00-01 Available to backorder	Gasket	£5.03 £4.19
15	HV544 00 97-01 Available to backorder	Pipe Fitting	£17.02 £14.18
16	HV544 00 19-01 Available to backorder	Filter	£33.06 £27.55
19	HV575 88 13-03 Available to backorder	Connector	£13.63 £11.36
20	HV544 17 64-01 Available to backorder	Tank Cap	£159.24 £132.70
21	HV544 04 65-03 Available to backorder	O-Ring	£3.95 £3.29
22	HV579 43 81-01 Available to backorder	Hydraulic Cylinder	£334.52 £278.77
24	HV735 31 26-00 Available to backorder	Circlip	£0.79 £0.66
25	HV537 59 45-01 Available to backorder	Hydraulic Cylinder	£321.60 £268.00
26	HV576 28 64-01 Available to backorder	Shaft Assy	£40.88 £34.07
27	HV506 57 01-03 Available to backorder	Screw Ehhfm	£5.02 £4.18
28	HV588 13 00-01 Available to backorder	Filter Unit	£283.56 £236.30
29	HV506 57 01-04 Available to backorder	Screw Ehhfm	£5.02 £4.18
30	HV588 54 86-01 Available to backorder	Valve	£379.08 £315.90
31	HV506 57 01-08 Available to backorder	Screw Ehhfm	£1.79 £1.49
35	HV575 88 13-02 Available to backorder	Connector	£11.66 £9.72
37	HV576 44 40-01 Available to backorder	Pipe Fitting	£14.93 £12.44
38	HV579 73 76-01 Available to backorder	Pipe Fitting	£20.44 £17.03
40	HV575 87 50-02 Available to backorder	Hydraulic Hose	£63.84 £53.20
41	HV575 87 52-01 Available to backorder	Hydraulic Hose	£70.92 £59.10
42	HV575 87 53-02 Available to backorder	Hydraulic Hose	£74.40 £62.00
44	HV575 87 55-01 Available to backorder	Hydraulic Hose	£44.77 £37.31
45	HV575 87 58-01 Available to backorder	Hydraulic Hose	£45.41 £37.84
47	HV575 87 51-01 Available to backorder	Hydraulic Hose	£69.60 £58.00
49	HV725 23 64-61 Available to backorder	Screw Ehhft	£2.56 £2.13
51	HV576 63 21-02 Available to backorder	Hydraulic Hose	£52.43 £43.69
53	HV740 42 13-00 Available to backorder	O-Ring	£3.82 £3.18
54	HV597 46 43-01 Available to backorder	Filter	£70.32 £58.60
56	HV522 47 13-01 Available to backorder	Washer	£2.30 £1.92
57	HV586 97 85-01 Available to backorder	Bearing	£20.36 £16.97
58	HV578 17 95-02 Available to backorder	Hydraulic Hose	£98.76 £82.30
60	HV575 88 13-06 Available to backorder	Connector	£14.32 £11.93
63	HV578 25 47-01 Available to backorder	Sheet	£15.38 £12.82
64	HV578 37 01-01 Available to backorder	Sheet	£10.26 £8.55
65	HV578 25 48-01 Available to backorder	Sheet	£28.20 £23.50
66	HV522 66 90-01 Available to backorder	Screw Ihscfm	£1.68 £1.40
67	HV731 23 16-01 Available to backorder	Hexagon Nut	£1.56 £1.30
68	HV725 52 30-01 Available to backorder	Screw Ihscm	£1.28 £1.07
69	HV731 23 10-01 Available to backorder	Hexagon Nut	£1.56 £1.30
70	HV578 17 96-01 Available to backorder	Leverfor 967602001. 2016	£165.24 £137.70
72	HV595 87 85-01 Available to backorder	Service Kitbearing And Circlip	£40.97 £34.14
