Husqvarna P 520D - Clutch

Name: Husqvarna P 520D - Clutch
SKU: p_520d_clutch-group
Price: 1.92 GBP
Availability: InStock

Part No. p_520d_clutch-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna P 520D

Model Year -

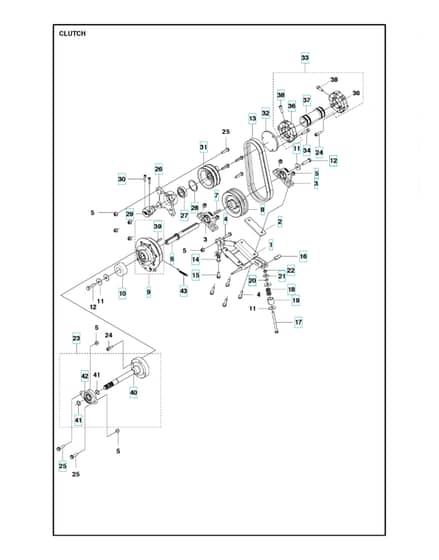

Clutch - Parts Diagram

	Part No.	Details
1	HV576 18 60-01 Available to backorder	Bearing Cage	£79.68 £66.40
3	HV506 04 36-01 Available to backorder	Bearing Unit	£135.84 £113.20
4	HV506 67 54-03 Available to backorder	Screw Ehhfm	£6.29 £5.24
5	HV576 64 57-05 Available to backorder	Nut Flange	£4.36 £3.63
6	HV579 29 62-01 Available to backorder	Shaft	£131.64 £109.70
7	HV504 81 35-01 Available to backorder	Wedge	£7.70 £6.42
8	HV585 99 93-01 Available to backorder	Pulley Assy	£208.80 £174.00
10	HV589 52 39-01 Available to backorder	Bearingclutch	£13.14 £10.95
11	HV535 42 92-01 Available to backorder	Washer	£9.79 £8.16
12	HV725 25 42-85 Available to backorder	Screwfor 967848801. 967292301. 967019501	£2.56 £2.13
12	HV725 25 42-86 Available to backorder	Screw Ehhmfor 966607301	£8.34 £6.95
13	HV589 53 95-01 Available to backorder	Belt	£82.32 £68.60
14	HV506 95 17-01 Available to backorder	Rod End	£19.21 £16.01
15	HV506 67 54-01 Available to backorder	Screw Ehhfm	£7.06 £5.88
16	HV510 16 76-01 Available to backorder	Pen	£11.54 £9.62
17	HV725 25 15-71 Available to backorder	Screw Ehhm	£9.62 £8.02
18	HV510 17 07-01 Available to backorder	Spring	£7.70 £6.42
19	HV522 94 69-01 Available to backorder	Sleeve	£15.38 £12.82
20	HV576 47 35-02 Available to backorder	Washerfor 967848801. 967292301. 967019501	£7.70 £6.42
21	HV576 47 35-03 Available to backorder	Washer	£3.32 £2.77
23	HV576 99 38-01 Available to backorder	Shaft Assy	£332.16 £276.80
24	HV502 23 36-01 Available to backorder	Screw Ihscm	£7.06 £5.88
25	HV506 67 54-02 In stock	Screw Ehhfm	£7.49 £6.24
26	HV506 04 32-01 Available to backorder	Bearing Cage	£55.14 £45.95
27	HV522 66 44-01 Available to backorder	Ball Bearing	£9.85 £8.21
28	HV522 66 43-01 Available to backorder	Circlip	£5.78 £4.82
29	HV506 04 34-01 Available to backorder	Shaft	£151.20 £126.00
30	HV725 54 55-01 Available to backorder	Screw Ihscm	£3.89 £3.24
31	HV505 02 04-01 Available to backorder	Pulley	£183.36 £152.80
36	HV515 98 34-01 Available to backorder	Rubber Ring	£99.00 £82.50
38	HV725 54 95-01 Available to backorder	Screw Ihscm	£4.68 £3.90
39	HV580 28 45-01 Available to backorder	Parallel Key	£4.36 £3.63
40	HV576 18 87-01 Available to backorder	Shaft Assy	£242.88 £202.40
41	HV576 47 36-01 Available to backorder	Clip	£2.30 £1.92
42	HV544 19 10-01 Available to backorder	Bearing Unit	£65.88 £54.90
43	HV506 83 43-01 Available to backorder	Spring	£3.84 £3.20
