Husqvarna Mondo - Carburetor Details

Name: Husqvarna Mondo - Carburetor Details
SKU: mondo_1997_04_carburetor_details-group
Price: 0.96 GBP
Availability: InStock

Part No. mondo_1997_04_carburetor_details-group

Description

Husqvarna Mondo

Model Year - 1997-04

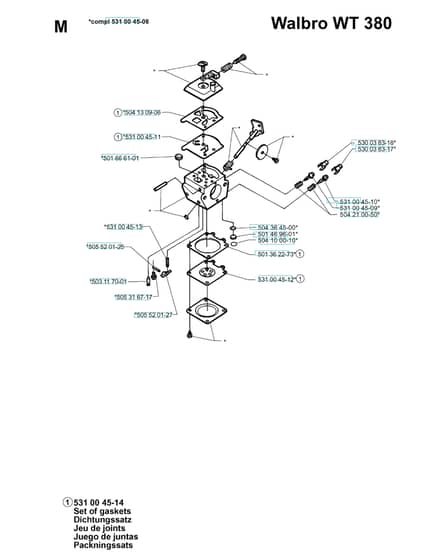

Carburetor Details - Parts Diagram

	Part No.	Details
501	HV501 36 22-73 Available to backorder	Diaphragm531 00 45-14 Set Of Gaskets	£4.63 £3.86
501	HV501 46 96-01 Available to backorder	Ring	£1.15 £0.96
501	HV501 66 61-01 Available to backorder	Screen	£5.21 £4.34
503	HV503 11 70-01 Available to backorder	Needle Valve	£10.58 £8.82
504	HV504 36 45-00 Available to backorder	Screen	£1.18 £0.98
504	HV504 13 09-06 Available to backorder	Gasket531 00 45-14 Set Of Gaskets	£4.63 £3.86
504	HV504 21 00-50 Available to backorder	Spring	£3.32 £2.77
505	HV505 52 01-25 Available to backorder	Pin	£4.52 £3.77
505	HV505 52 01-27 Available to backorder	Lever	£5.38 £4.48
531	HV531 00 45-11 Available to backorder	Pump Diaphragm531 00 45-14 Set Of Gaskets	£9.08 £7.57
