Husqvarna M53SPRO - Mower Deck & Cutting Deck

Description

Husqvarna M53SPRO

Model Year - -

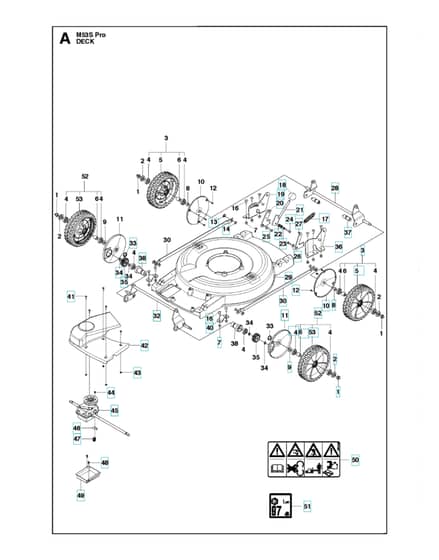

Mower Deck & Cutting Deck - Parts Diagram

	Part No.	Details
1	HV295 67 71-05 Available to backorder	Nut	£4.36 £3.63
2	HV295 66 67-02 Available to backorder	Washer	£5.12 £4.27
3	HV295 66 71-04 Available to backorder	Wheel	£61.44 £51.20
4	HV503 24 29-01 Available to backorder	Ball Bearing 6201 2RS/C3	£8.03 £6.69
5	HV295 68 87-04 Available to backorder	Wheel Assy	£30.62 £25.52
6	HV295 66 72-01 Available to backorder	Spacer	£8.98 £7.48
7	HV576 64 57-03 Available to backorder	Lock Nut	£2.30 £1.92
8	HV295 66 62-01 Available to backorder	Spacer	£4.12 £3.43
9	HV295 67 52-01 Available to backorder	Spacer Washer	£4.12 £3.43
10	HV295 66 73-01 Available to backorder	Shield	£7.84 £6.53
11	HV295 66 93-02 Available to backorder	Shieldvalid To S/N 20131900066	£2.90 £2.42
12	HV729 57 74-01 Available to backorder	Screw Crpant	£1.67 £1.39
13	HV295 67 74-01 Available to backorder	Ring	£2.33 £1.94
14	HV740 42 10-00 Available to backorder	O-Ring	£3.82 £3.18
16	HV727 63 72-51 Available to backorder	Screw	£3.07 £2.56
18	HV295 67 81-01 Available to backorder	Ball	£5.46 £4.55
19	HV580 37 18-01 Available to backorder	Index Plate	£24.36 £20.30
20	HV295 66 18-01 Available to backorder	Link Arm	£12.18 £10.15
22	HV295 61 36-01 Available to backorder	Spring	£4.74 £3.95
24	HV725 23 76-51 Available to backorder	Screw Ehhm	£2.36 £1.97
26	HV734 11 54-41 Available to backorder	Washer	£2.56 £2.13
27	HV295 66 77-01 Available to backorder	Lever	£11.54 £9.62
28	HV295 66 09-01 Available to backorder	Axle	£99.12 £82.60
30	HV295 66 03-01 Available to backorder	Rod	£23.72 £19.77
32	HV579 58 11-01 Available to backorder	Axlevalid From S/N 20131900067	£75.72 £63.10
32	HV295 66 10-01 Available to backorder	Axlevalid To S/N 20131900066	£102.84 £85.70
33	HV295 67 87-02 Available to backorder	Spring	£3.73 £3.11
35	HV295 66 69-01 Available to backorder	Pinion	£35.57 £29.64
36	HV580 37 17-01 Available to backorder	Handle Support	£25.00 £20.83
38	HV579 58 10-01 Available to backorder	Shaftvalid From S/N 20131900067	£29.03 £24.19
38	HV295 65 97-01 Available to backorder	Shaftvalid To S/N 20131900066	£17.51 £14.59
40	HV295 66 17-01 Available to backorder	Holder	£10.37 £8.64
41	HV504 46 70-01 Available to backorder	Screw Itxpanm	£1.79 £1.49
42	HV295 66 92-01 Available to backorder	Front Cover	£30.76 £25.63
44	HV729 53 40-01 Available to backorder	Screw Ccrpant	£1.56 £1.30
45	HV295 65 93-01 In stock	Gearboxvalid To S/N 20131900066	Was £193.50 £161.25 Special Price £150.22 £125.18
45	HV579 58 08-01 Available to backorder	Gearboxvalid From S/N 20131900067	£201.12 £167.60
46	HV295 67 89-01 Available to backorder	Bracket	£6.40 £5.33
47	HV295 67 48-01 Available to backorder	Spring	£4.22 £3.52
48	HV502 43 52-01 Available to backorder	Screw Itxpantt	£1.79 £1.49
49	HV295 66 74-01 Available to backorder	Cup	£18.82 £15.68
50	HV579 73 39-01 Available to backorder	Decal	£3.32 £2.77
52	HV295 66 70-04 Available to backorder	Wheel Assy	£64.32 £53.60
53	HV295 68 86-04 Available to backorder	Wheel Assy	£31.20 £26.00
