LZC 5225 - Zero Turn Commercial Parts
Husqvarna Lzc5225 - Engine Plate

Husqvarna Lzc5225 - Engine Plate

Part No. lzc5225_2009_06_engine_plate-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Lzc5225 - Engine Plate

Husqvarna Lzc5225 - Engine Plate

Description

Husqvarna Lzc5225

Model Year - 2009-06

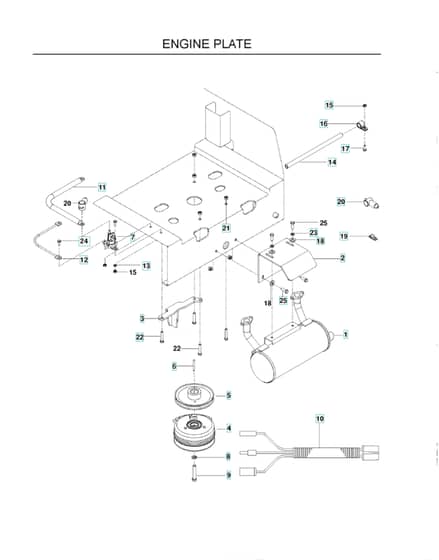

Engine Plate - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV539 10 58-97 Available to backorder	Muffler		£445.52 £371.27
	4		HV539 10 54-06 Available to backorder	Clutch		£462.61 £385.51
	7		HV539 10 17-14 Available to backorder	Solenoid		£22.55 £18.79
	8		HV596 23 89-01 Available to backorder	Washer		£3.12 £2.60
	17		HV539 99 05-80 Available to backorder	Screw		£2.56 £2.13
	20		HV539 10 27-59 Available to backorder	Insulator		£5.41 £4.51
	21		HV539 99 07-17 Available to backorder	Nut		£2.44 £2.03
	22		HV539 99 06-69 Available to backorder	Screw		£6.29 £5.24
	23		HV539 99 01-87 Available to backorder	Washer		£2.56 £2.13
	25		HV539 99 02-09 Available to backorder	Screw		£4.22 £3.52

Description

Husqvarna Lzc5225

Model Year - 2009-06

Engine Plate - Parts Diagram
