LZ6130 TXPKOA - Zero Turn Commercial Parts
Husqvarna Lz 6130 Txpkoa - Electrical

Husqvarna Lz 6130 Txpkoa - Electrical

Part No. lz_6130_txpkoa_2007_04_electrical-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Lz 6130 Txpkoa - Electrical

Husqvarna Lz 6130 Txpkoa - Electrical

Description

Husqvarna Lz 6130 Txpkoa

Model Year - 2007-04

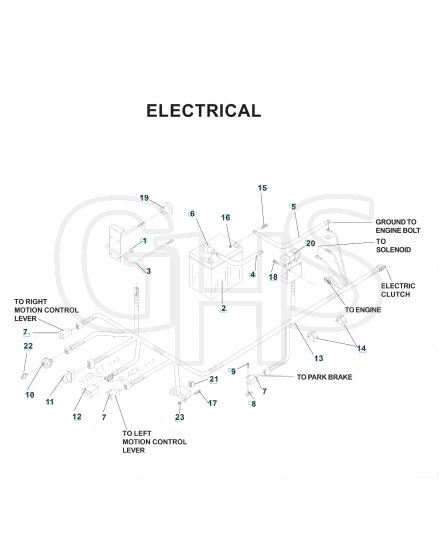

Electrical - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV539 10 25-87 Available to backorder	Absorber		£8.56 £7.13
	6		HV539 10 27-59 Available to backorder	Insulator		£5.41 £4.51
	7		HV539 10 10-80 Available to backorder	Switch		£18.24 £15.20
	8		HV539 10 26-78 Available to backorder	Plate		£7.06 £5.88
	11		HV539 10 17-68 Available to backorder	Switch		£42.00 £35.00
	15		HV539 97 69-34 Available to backorder	Screw		£3.59 £2.99
	16		HV539 99 07-17 Available to backorder	Nut		£2.44 £2.03
	23		HV539 97 69-77 Available to backorder	Nut		£1.79 £1.49

Description

Husqvarna Lz 6130 Txpkoa

Model Year - 2007-04

Electrical - Parts Diagram
