Husqvarna Lz 6123 Ltkoa - Fuel System

Husqvarna Lz 6123 Ltkoa - Fuel System

Part No. lz_6123_ltkoa_2007_02_fuel_system-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

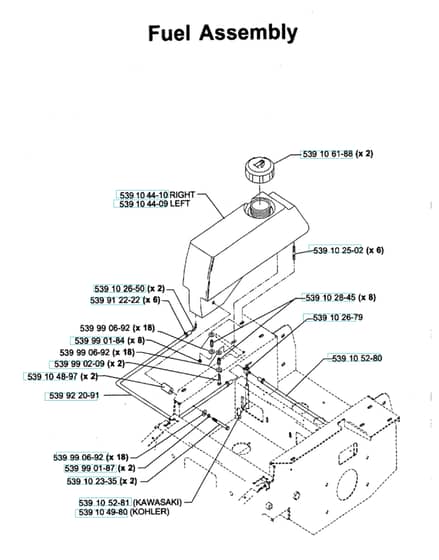

Husqvarna Lz 6123 Ltkoa - Fuel System

Husqvarna Lz 6123 Ltkoa - Fuel System

Description

Husqvarna Lz 6123 Ltkoa

Model Year - 2007-02

Fuel System - Parts Diagram

Ref.		Img.	Part No.	Details
	539		HV539 10 44-09 Available to backorder	Tank Unit		£163.56 £136.30
	539		HV539 99 01-84 Available to backorder	Nut		£2.44 £2.03
	539		HV539 10 26-50 Available to backorder	Connection		£7.70 £6.42
	539		HV539 10 61-88 Available to backorder	Tank Cap - Anti		£25.70 £21.42
	539		HV539 99 01-87 Available to backorder	Washer		£2.56 £2.13
	539		HV539 10 26-79 Available to backorder	Valve		£46.80 £39.00
	539		HV539 91 22-22 Available to backorder	Clamp		£1.40 £1.17
	539		HV539 99 02-09 Available to backorder	Screw		£4.22 £3.52

Description

Husqvarna Lz 6123 Ltkoa

Model Year - 2007-02

Fuel System - Parts Diagram
