Husqvarna Lth19530 - Mower Lift & Deck Lift

Name: Husqvarna Lth19530 - Mower Lift & Deck Lift
SKU: lth19530_2013_05_mower_lift_deck_lift-group
Price: 1.16 GBP
Availability: InStock

Part No. lth19530_2013_05_mower_lift_deck_lift-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Lth19530 - Mower Lift & Deck Lift

Description

Husqvarna Lth19530

Model Year - 2013-05

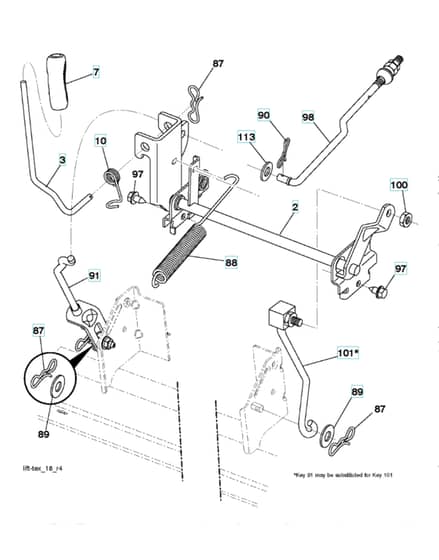

Mower Lift & Deck Lift - Parts Diagram

	Part No.	Details
7	HV532 41 15-55 Available to backorder	Grip	£10.43 £8.69
87	HV532 19 42-09 Available to backorder	Spring	£3.74 £3.12
88	HV532 41 07-10 Available to backorder	Spring	£21.16 £17.63
89	HV819 19 19-12 Available to backorder	Washer	£3.85 £3.21
90	HV532 19 42-08 Available to backorder	Pin	£1.39 £1.16
91	HV532 19 51-81 Available to backorder	Link	£45.52 £37.93
97	HV817 00 06-12 Available to backorder	Screw	£5.78 £4.82
101	HV532 40 70-03 Available to backorder	Link	£19.21 £16.01
113	HV819 17 19-12 Available to backorder	Washer	£4.63 £3.86
