Husqvarna Lth1542 - Mower Deck & Cutting Deck

Name: Husqvarna Lth1542 - Mower Deck & Cutting Deck
SKU: lth1542_2005_10_mower_deck_cutting_deck-group
Price: 1.68 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Lth1542 - Mower Deck & Cutting Deck

Description

Husqvarna Lth1542

Model Year - 2005-10

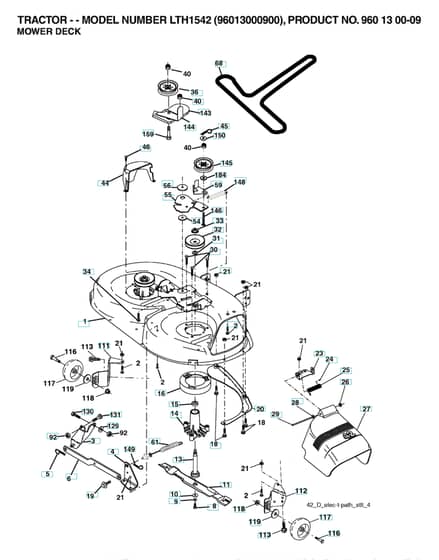

Mower Deck & Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV532 13 97-75 Available to backorder	Ride On Blade	£28.78 £23.98
0	HV532 13 07-94 Available to backorder	Mandrel	£144.52 £120.43
1	HV532 13 41-49 In stock	Ride On Blade	£33.05 £27.54
2	HV595 90 16-01 Available to backorder	Bolt	£4.30 £3.58
3	HV532 13 80-17 Available to backorder	Bracke	£20.06 £16.72
6	HV532 17 80-24 Available to backorder	Lever	£23.28 £19.40
10	HV532 14 02-96 Available to backorder	Washer	£8.40 £7.00
11	HV532 13 89-71 Available to backorder	Blade	£32.04 £26.70
14	HV532 12 87-74 Available to backorder	Bearing Housing	£66.38 £55.32
15	HV532 11 04-85 In stock	Bearing	£8.52 £7.10
16	HV531 16 77-01 In stock	Stripper. Mandrel.Black	£13.24 £11.03
18	HV596 13 64-01 Available to backorder	Bolt	£3.26 £2.72
19	HV532 13 28-27 Available to backorder	Spec. Bolt	£7.12 £5.93
20	HV531 16 70-01 Available to backorder	Rail	£27.12 £22.60
23	HV532 17 75-63 Available to backorder	Bracket	£11.64 £9.70
24	HV532 10 53-04 Available to backorder	Hub Cap	£3.48 £2.90
25	HV532 12 37-13 In stock	Spring	£11.34 £9.45
26	HV532 11 04-52 Available to backorder	Nut	£2.02 £1.68
29	HV532 13 14-91 Available to backorder	Shaft	£9.46 £7.88
31	HV532 18 76-90 Available to backorder	Washer	£3.54 £2.95
44	HV532 14 00-88 Available to backorder	Guard	£38.18 £31.82
46	HV532 13 77-29 Available to backorder	Screw	£2.52 £2.10
54	HV532 17 85-15 In stock	Washer	Was £8.71 £7.26 Special Price £5.82 £4.85
55	HV531 16 66-01-1 Available to backorder	Lever	£18.60 £15.50
56	HV532 16 57-23 In stock	Spacer	£12.28 £10.23
61	HV532 17 48-82 Available to backorder	Spring	£18.76 £15.63
68	HV532 17 48-83 Available to backorder	Belt	£102.72 £85.60
113	HV817 00 05-10 Available to backorder	Bolt	£3.62 £3.02
117	HV532 18 86-06 Available to backorder	Wheel	£14.82 £12.35
130	HV874 78 06-16 Available to backorder	Bolt	£6.34 £5.28
146	HV532 17 19-77 Available to backorder	Shaft	£16.56 £13.80
148	HV532 16 90-22 Available to backorder	Spring	£5.04 £4.20
149	HV532 16 58-98 Available to backorder	Spring	£3.88 £3.23
159	HV596 98 75-01 Available to backorder	Bolt	£7.19 £5.99
