Husqvarna Lth1538 - Drive

Name: Husqvarna Lth1538 - Drive
SKU: lth1538_drive-group
Price: 0.64 GBP
Availability: InStock

Part No. lth1538_drive-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna Lth1538

Model Year -

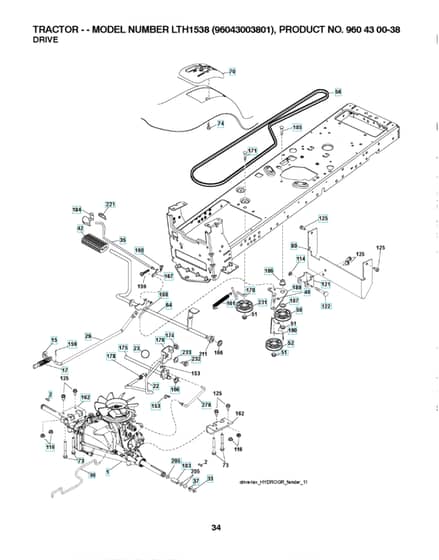

Drive - Parts Diagram

	Part No.	Details
-1	HV532 19 62-12 Available to backorder	Bushing	£10.26 £8.55
2	HV532 12 35-83 In stock	Key	£7.18 £5.98
22	HV532 19 76-60 Available to backorder	Rod	£60.68 £50.57
23	HV532 14 08-45 Available to backorder	Knob	£21.16 £17.63
33	HV812 00 00-01 Available to backorder	Retainer Ring	£0.77 £0.64
35	HV532 40 10-31 Available to backorder	Rod	£12.82 £10.68
37	HV532 12 17-49 In stock	Washer	£2.82 £2.35
49	HV872 11 06-14 Available to backorder	Bolt	£7.06 £5.88
50	HV532 19 43-27 Available to backorder	Pulley	£43.55 £36.29
52	HV532 19 43-26 Available to backorder	Pulley	£42.83 £35.69
56	HV532 12 59-07 Available to backorder	Belt	£62.76 £52.30
64	HV532 19 62-00 Available to backorder	Shaft	£100.32 £83.60
73	HV874 49 05-44 Available to backorder	Screw	£7.06 £5.88
74	HV532 14 24-32 Available to backorder	Screw	£2.30 £1.92
80	HV532 40 83-93 Available to backorder	Strap.Torque.Fs.T2 Subs/2	£28.97 £24.14
99	HV532 40 84-18 Available to backorder	Rod	£7.06 £5.88
114	HV596 04 05-01 Available to backorder	Lock Nut	£2.03 £1.69
116	HV873 90 05-00 Available to backorder	Nut	£2.69 £2.24
122	HV872 01 05-20 Available to backorder	Bolt	£7.06 £5.88
160	HV532 16 94-84 Available to backorder	Pin	£4.12 £3.43
166	HV532 19 72-90 Available to backorder	Nut	£1.79 £1.49
167	HV532 40 52-57 Available to backorder	Latch	£5.78 £4.82
171	HV872 11 06-22 Available to backorder	Bolt	£8.32 £6.93
174	HV532 19 72-89 Available to backorder	Nut	£2.05 £1.71
186	HV532 19 43-21 In stock	Spacer	£14.36 £11.97
188	HV532 19 43-23 Available to backorder	Link	£7.96 £6.63
189	HV532 19 43-17 Available to backorder	Plate	£14.74 £12.28
205	HV532 12 17-48 Available to backorder	Washer	£6.00 £5.00
221	HV532 40 31-87 Available to backorder	Spring	£3.84 £3.20
231	HV532 40 72-87 Available to backorder	Pulley	£34.66 £28.88
