Husqvarna Lth1438 - Mower Deck & Cutting Deck

Name: Husqvarna Lth1438 - Mower Deck & Cutting Deck
SKU: lth1438_mower_deck_cutting_deck-group
Price: 0.86 GBP
Availability: InStock

Part No. lth1438_mower_deck_cutting_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Lth1438 - Mower Deck & Cutting Deck

Description

Husqvarna Lth1438

Model Year -

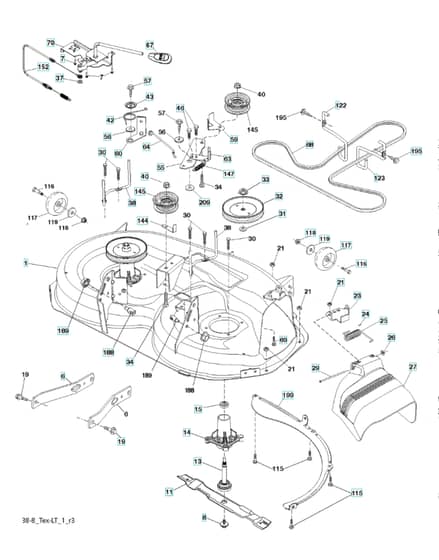

Mower Deck & Cutting Deck - Parts Diagram

	Part No.	Details
-1	HV532 19 28-70 Available to backorder	Spindleincl Housing Shaft Assembly And Bearing Only.Pulley Nut Washer And Blade Bolt Washers Not Included	£158.64 £132.20
6	HV529 84 64-01 In stock	Arm	Was £31.64 £26.37 Special Price £21.52 £17.93
7	HV532 41 63-58 Available to backorder	Screw	£2.05 £1.71
8	HV532 19 30-03 Available to backorder	Screw	£13.87 £11.56
11	HV532 13 84-97 Available to backorder	Bladehi Perf	£31.44 £26.20
15	HV532 11 04-85 In stock	Bearing	£9.24 £7.70
19	HV532 19 65-39 Available to backorder	Bolt	£6.40 £5.33
23	HV532 19 25-57 Available to backorder	Hinge	£13.69 £11.41
24	HV532 10 53-04 Available to backorder	Hub Cap	£3.52 £2.93
25	HV532 19 70-26 Available to backorder	Torsion Spring	£11.74 £9.78
26	HV532 11 04-52 Available to backorder	Nut	£2.09 £1.74
29	HV532 13 14-91 In stock	Shaft	£10.15 £8.46
31	HV532 18 76-90 Available to backorder	Washer	£3.66 £3.05
32	HV532 19 97-91 In stock	Pulley	£38.28 £31.90
42	HV532 19 84-10 Available to backorder	Spring	£5.02 £4.18
43	HV532 19 72-56 Available to backorder	Spring	£4.99 £4.16
46	HV532 13 77-29 In stock	Screw	£2.22 £1.85
55	HV531 16 94-01 In stock	Arm	£19.21 £16.01
56	HV532 19 90-92 Available to backorder	Spacer	£5.75 £4.79
57	HV817 00 06-16 Available to backorder	Screw	£6.02 £5.02
60	HV532 40 01-32 Available to backorder	Armlh	£15.66 £13.05
67	HV532 40 30-12 Available to backorder	Handle	£13.46 £11.22
68	HV532 40 83-81 In stock	Belt	£47.87 £39.89
69	HV596 13 64-01 Available to backorder	Bolt	£4.16 £3.47
70	HV532 40 12-46 Available to backorder	Clutch	£61.80 £51.50
115	HV596 03 94-01 Available to backorder	Bolt	£1.03 £0.86
117	HV532 18 86-06 Available to backorder	Wheel	£14.98 £12.48
122	HV531 16 95-01 Available to backorder	Belt Guidelh	£19.57 £16.31
123	HV531 16 97-01 Available to backorder	Belt Guiderh	£14.36 £11.97
144	HV532 19 34-14 Available to backorder	Belt Guide	£7.06 £5.88
147	HV532 40 18-72 Available to backorder	Spring	£7.18 £5.98
188	HV532 19 51-61 Available to backorder	Stud	£2.94 £2.45
189	HV873 90 05-00 Available to backorder	Nut	£2.69 £2.24
195	HV817 00 06-12 Available to backorder	Screw	£5.78 £4.82
199	HV531 17 04-01 In stock	Baffle	£28.80 £24.00
