Husqvarna Lth140 - Chassis & Enclosures

Husqvarna Lth140 - Chassis & Enclosures

Part No. lth140_1998_05_chassis_enclosures-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Lth140 - Chassis & Enclosures

Husqvarna Lth140 - Chassis & Enclosures

Description

Husqvarna Lth140

Model Year - 1998-05

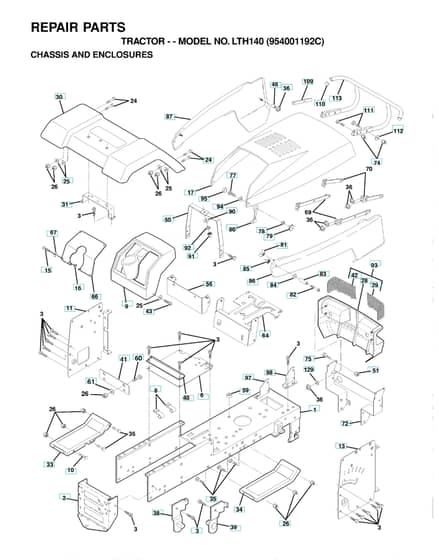

Chassis & Enclosures - Parts Diagram

Ref.		Img.	Part No.	Details
	8		HV532 12 64-71 Available to backorder	Clip		£0.90 £0.75
	24		HV874 78 06-16 Available to backorder	Bolt		£6.29 £5.24
	38		HV532 13 98-86 Available to backorder	Bracket		£8.45 £7.04
	74		HV596 32 26-01 Available to backorder	Nut		£3.83 £3.19
	78		HV810 07 10-00 Available to backorder	Washer		£2.56 £2.13
	80		HV532 10 98-08 Available to backorder	Latch		£9.12 £7.60
	83		HV532 00 72-06 Available to backorder	Spacer		£2.69 £2.24
	92		HV596 02 98-01 Available to backorder	Washer		£2.44 £2.03

Description

Husqvarna Lth140

Model Year - 1998-05

Chassis & Enclosures - Parts Diagram
