Husqvarna Lth1342 - Mower Deck & Cutting Deck

Name: Husqvarna Lth1342 - Mower Deck & Cutting Deck
SKU: lth1342_2002_02_mower_deck_cutting_deck-group
Price: 0.99 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Lth1342 - Mower Deck & Cutting Deck

Description

Husqvarna Lth1342

Model Year - 2002-02

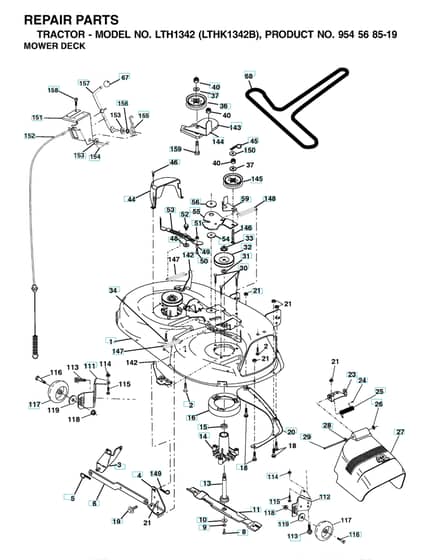

Mower Deck & Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV532 13 07-94 Available to backorder	Mandrel	£144.52 £120.43
2	HV595 90 16-01 Available to backorder	Bolt	£4.30 £3.58
3	HV532 13 80-17 Available to backorder	Bracke	£20.06 £16.72
6	HV532 17 80-24 Available to backorder	Lever	£23.28 £19.40
8	HV532 85 08-57 Available to backorder	Bolt	£6.30 £5.25
10	HV532 14 02-96 Available to backorder	Washer	£8.40 £7.00
14	HV532 12 87-74 Available to backorder	Bearing Housing	£66.38 £55.32
15	HV532 11 04-85 In stock	Bearing	£8.52 £7.10
16	HV531 16 77-01 In stock	Stripper. Mandrel.Black	£13.24 £11.03
18	HV596 13 64-01 Available to backorder	Bolt	£3.26 £2.72
19	HV532 13 28-27 Available to backorder	Spec. Bolt	£7.12 £5.93
20	HV531 16 70-01 Available to backorder	Rail	£27.12 £22.60
23	HV532 17 75-63 Available to backorder	Bracket	£11.64 £9.70
24	HV532 10 53-04 Available to backorder	Hub Cap	£3.48 £2.90
25	HV532 12 37-13 In stock	Spring	£11.34 £9.45
26	HV532 11 04-52 Available to backorder	Nut	£2.02 £1.68
29	HV532 13 14-91 Available to backorder	Shaft	£9.46 £7.88
32	HV532 17 34-36 Available to backorder	Pulley	£41.76 £34.80
34	HV872 11 06-14 Available to backorder	Bolt	£7.12 £5.93
36	HV597 02 50-01 Available to backorder	Pulley	£49.82 £41.52
40	HV596 32 26-01 Available to backorder	Nut	£3.79 £3.16
44	HV532 14 00-88 Available to backorder	Guard	£38.18 £31.82
46	HV532 13 77-29 Available to backorder	Screw	£2.52 £2.10
49	HV532 17 42-84 Available to backorder	Roller	£7.12 £5.93
51	HV532 06 91-80 Available to backorder	Nut	£1.82 £1.52
52	HV532 13 98-88 Available to backorder	Bolt	£5.21 £4.34
55	HV531 16 66-01-1 Available to backorder	Lever	£18.60 £15.50
67	HV532 10 69-32 Available to backorder	Knob	£10.36 £8.63
68	HV532 14 49-59 Available to backorder	Belt	£72.02 £60.02
115	HV596 03 94-01 Available to backorder	Bolt	£1.19 £0.99
117	HV532 16 57-46 Available to backorder	Wheel	£14.42 £12.02
142	HV532 16 58-90 Available to backorder	Bracket	£12.28 £10.23
144	HV532 17 34-41 Available to backorder	Belt Guide	£11.80 £9.83
145	HV532 17 34-37 Available to backorder	Pulley	£57.58 £47.98
147	HV532 17 97-48 Available to backorder	Spring	£6.20 £5.17
148	HV532 16 90-22 Available to backorder	Spring	£5.04 £4.20
149	HV532 16 58-98 Available to backorder	Spring	£3.88 £3.23
151	HV532 16 96-70 Available to backorder	Bracket	£19.40 £16.17
154	HV532 16 96-75 Available to backorder	Pin	£5.04 £4.20
155	HV532 16 96-71 In stock	Spring	£21.29 £17.74
156	HV532 16 96-72 Available to backorder	Spacer	£2.34 £1.95
157	HV532 16 96-69 Available to backorder	Control	£42.58 £35.48
159	HV596 98 75-01 Available to backorder	Bolt	£7.19 £5.99
