Husqvarna Lth130 - Chassis & Enclosures

Husqvarna Lth130 - Chassis & Enclosures

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Lth130 - Chassis & Enclosures

Husqvarna Lth130 - Chassis & Enclosures

Description

Husqvarna Lth130

Model Year - 2003-01

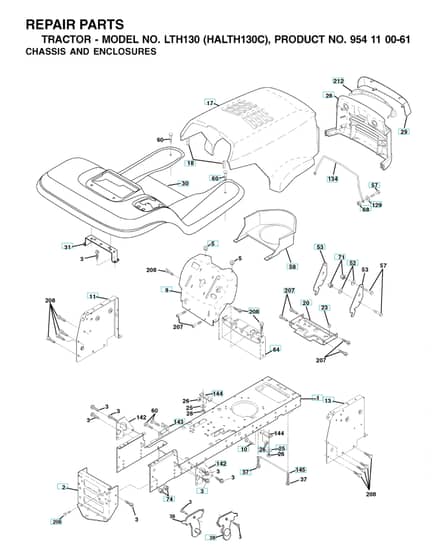

Chassis & Enclosures - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	37		HV817 49 05-08 Available to backorder	Screw		£3.62 £3.02
	52		HV819 09 14-16 Available to backorder	Washer		£3.12 £2.60
	71		HV873 68 04-00 Available to backorder	Nut		£2.98 £2.48
	74		HV596 32 26-01 Available to backorder	Nut		£3.79 £3.16
	206		HV532 17 01-65 Available to backorder	Bolt		£5.32 £4.43
	208		HV817 67 06-08 Available to backorder	Screw		£5.32 £4.43

Description

Husqvarna Lth130

Model Year - 2003-01

Chassis & Enclosures - Parts Diagram
