Husqvarna Lth13 - Mower Deck & Cutting Deck

Description

Husqvarna Lth13

Model Year - 1995-01

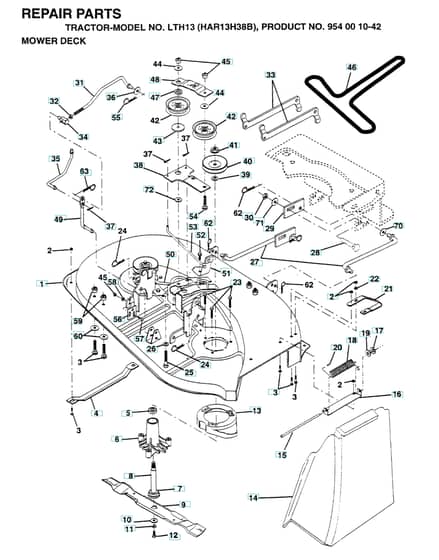

Mower Deck & Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV532 13 07-94 Available to backorder	Mandrel	£144.52 £120.43
3	HV595 90 16-01 Available to backorder	Bolt	£4.30 £3.58
5	HV532 11 04-85 In stock	Bearing	£8.52 £7.10
6	HV532 12 87-74 Available to backorder	Bearing Housing	£66.38 £55.32
7	HV532 12 98-95 Available to backorder	Bearing	£9.28 £7.73
9	HV532 13 84-97 Available to backorder	Blade	£27.36 £22.80
10	HV532 14 02-96 Available to backorder	Washer	£8.40 £7.00
12	HV532 85 08-57 Available to backorder	Bolt	£6.30 £5.25
14	HV532 10 67-36 Available to backorder	Deflector	£56.28 £46.90
16	HV532 13 76-07 Available to backorder	Bracket	£17.14 £14.28
17	HV532 11 04-52 Available to backorder	Nut	£2.02 £1.68
18	HV532 12 37-13 In stock	Spring	£11.34 £9.45
20	HV532 10 53-04 Available to backorder	Hub Cap	£3.48 £2.90
21	HV532 12 87-72 Available to backorder	Support	£14.40 £12.00
31	HV532 14 09-15 Available to backorder	Rod	£28.56 £23.80
38	HV532 13 38-40 Available to backorder	Lever	£27.18 £22.65
42	HV532 12 13-16 Available to backorder	Pulley	£84.94 £70.78
44	HV819 13 16-12 Available to backorder	Washer	£4.66 £3.88
47	HV532 13 35-02 Available to backorder	Spacer	£7.12 £5.93
48	HV532 13 35-03 Available to backorder	Lever	£15.54 £12.95
50	HV532 13 12-89 Available to backorder	Brake Lever	£8.40 £7.00
51	HV531 16 51-01 Available to backorder	Brake Lever	£10.25 £8.54
54	HV872 11 06-14 Available to backorder	Bolt	£7.12 £5.93
59	HV596 04 05-01 Available to backorder	Lock Nut	£2.06 £1.72
71	HV819 13 16-10 Available to backorder	Washer	£4.66 £3.88
