Husqvarna Lth13 - Drive

Husqvarna Lth13 - Drive

Part No. lth13_1995_01_drive-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Lth13 - Drive

Husqvarna Lth13 - Drive

Description

Husqvarna Lth13

Model Year - 1995-01

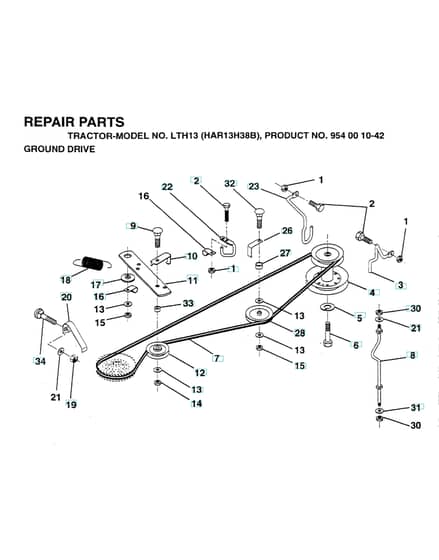

Drive - Parts Diagram

Ref.		Img.	Part No.	Details
	4		HV532 13 80-29 Available to backorder	Pulley		£137.76 £114.80
	5		HV810 04 07-00 Available to backorder	Washer		£3.12 £2.60
	7		HV532 14 09-10 Available to backorder	Belt		£58.46 £48.72
	12		HV532 12 36-74 Available to backorder	Pulley		£48.48 £40.40
	28		HV532 13 91-23 Available to backorder	Pulley		£22.09 £18.41
	30		HV596 04 05-01 Available to backorder	Lock Nut		£2.03 £1.69
	32		HV872 14 06-20 Available to backorder	Bolt		£7.70 £6.42
	34		HV595 90 16-01 Available to backorder	Bolt		£4.22 £3.52

Description

Husqvarna Lth13

Model Year - 1995-01

Drive - Parts Diagram
