Husqvarna Lth120 - Chassis & Enclosures

Husqvarna Lth120 - Chassis & Enclosures

Part No. lth120_2000_01_chassis_enclosures-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Lth120 - Chassis & Enclosures

Husqvarna Lth120 - Chassis & Enclosures

Description

Husqvarna Lth120

Model Year - 2000-01

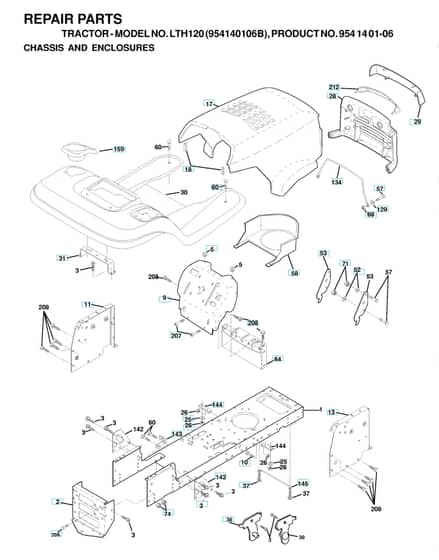

Chassis & Enclosures - Parts Diagram

Ref.		Img.	Part No.	Details
	37		HV817 49 05-08 Available to backorder	Screw		£3.59 £2.99
	52		HV819 09 14-16 Available to backorder	Washer		£3.07 £2.56
	71		HV873 68 04-00 Available to backorder	Nut		£2.94 £2.45
	74		HV596 32 26-01 Available to backorder	Nut		£3.83 £3.19
	206		HV532 17 01-65 Available to backorder	Bolt		£5.24 £4.37
	208		HV817 67 06-08 Available to backorder	Screw		£5.24 £4.37

Description

Husqvarna Lth120

Model Year - 2000-01

Chassis & Enclosures - Parts Diagram
