Husqvarna Lt19538 - Chassis & Enclosures

Description

Husqvarna Lt19538

Model Year - 2011-08

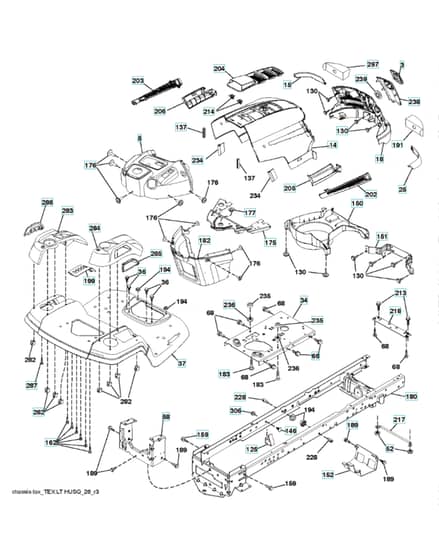

Chassis & Enclosures - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
5	HV532 43 89-64 Available to backorder	Dash	£62.12 £51.77
14	HV532 44 12-67 Available to backorder	Hood	£139.49 £116.24
68	HV817 49 05-08 Available to backorder	Screw	£3.62 £3.02
125	HV581 68 48-01 Available to backorder	Clip	£0.92 £0.77
130	HV532 41 63-58 Available to backorder	Screw	£2.06 £1.72
137	HV532 40 75-90 Available to backorder	Damping Piece	£5.96 £4.97
146	HV581 85 79-01 Available to backorder	Bolt	£2.84 £2.37
150	HV532 40 66-62 Available to backorder	Air Duct	£40.76 £33.97
151	HV532 40 78-07 Available to backorder	Bracket	£51.76 £43.13
152	HV532 19 95-35 Available to backorder	Shield	£48.52 £40.43
159	HV817 00 06-12 Available to backorder	Screw	£5.68 £4.73
162	HV532 14 24-32 Available to backorder	Screw	£2.34 £1.95
175	HV532 19 94-72 Available to backorder	Plate	£62.76 £52.30
176	HV532 40 07-76 Available to backorder	Screw	£2.06 £1.72
177	HV532 19 52-28 Available to backorder	Bushing	£10.78 £8.98
180	HV532 41 50-63 Available to backorder	Frame	£341.88 £284.90
182	HV532 40 71-76 Available to backorder	Dash	£141.04 £117.53
183	HV874 52 05-20 Available to backorder	Bolt	£4.78 £3.98
194	HV873 90 05-00 Available to backorder	Nut	£2.72 £2.27
199	HV532 41 34-85 Available to backorder	Plate	£19.40 £16.17
204	HV532 44 13-75 Available to backorder	Cover	£39.46 £32.88
205	HV532 44 13-44 Available to backorder	Skirt	£26.54 £22.12
206	HV532 44 13-45 Available to backorder	Skirt	£27.18 £22.65
214	HV532 19 91-45 Available to backorder	Clip	£0.92 £0.77
228	HV532 19 51-61 Available to backorder	Stud	£2.98 £2.48
234	HV532 40 47-42 Available to backorder	Damping Piece	£12.28 £10.23
235	HV532 40 61-29 Available to backorder	Spacer	£9.16 £7.63
236	HV873 93 05-00 Available to backorder	Nut	£2.34 £1.95
239	HV532 40 48-83 Available to backorder	Clip	£0.92 £0.77
282	HV532 41 41-10 Available to backorder	Clip	£1.56 £1.30
