Husqvarna Lt152 - Chassis & Enclosures

Name: Husqvarna Lt152 - Chassis & Enclosures
SKU: lt152_chassis_enclosures-group
Price: 0.75 GBP
Availability: InStock

Part No. lt152_chassis_enclosures-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna Lt152

Model Year -

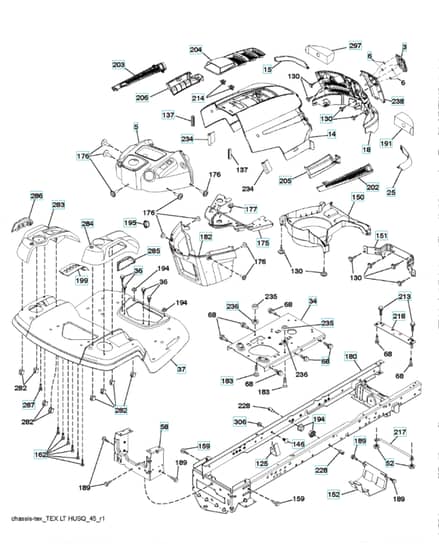

Chassis & Enclosures - Parts Diagram

	Part No.	Details
5	HV532 43 89-64 Available to backorder	Dash	£61.51 £51.26
6	HV532 40 48-83 Available to backorder	Clip	£0.90 £0.75
14	HV532 44 12-67 Available to backorder	Hood	£138.84 £115.70
68	HV817 49 05-08 Available to backorder	Screw	£3.59 £2.99
125	HV581 68 48-01 Available to backorder	Clip	£0.90 £0.75
130	HV532 41 63-58 Available to backorder	Screw	£2.05 £1.71
137	HV532 40 75-90 Available to backorder	Damping Piece	£5.90 £4.92
146	HV581 85 79-01 Available to backorder	Bolt	£2.83 £2.36
151	HV532 40 78-07 Available to backorder	Bracket	£51.25 £42.71
152	HV532 19 95-35 Available to backorder	Shield	£48.07 £40.06
159	HV817 00 06-12 Available to backorder	Screw	£5.78 £4.82
162	HV532 14 24-32 Available to backorder	Screw	£2.30 £1.92
175	HV532 19 94-72 Available to backorder	Plate	£60.12 £50.10
176	HV532 40 07-76 Available to backorder	Screw	£2.05 £1.71
177	HV532 19 52-28 Available to backorder	Bushing	£10.88 £9.07
180	HV532 41 50-63 Available to backorder	Frame	£366.60 £305.50
182	HV532 40 71-76 Available to backorder	Dash	£135.00 £112.50
194	HV873 90 05-00 Available to backorder	Nut	£2.69 £2.24
195	HV532 43 99-76 Available to backorder	Plug	£9.08 £7.57
199	HV532 41 34-85 Available to backorder	Plate	£19.21 £16.01
204	HV532 44 13-75 Available to backorder	Cover	£39.10 £32.58
205	HV532 44 13-44 Available to backorder	Skirt	£26.28 £21.90
206	HV532 44 13-45 Available to backorder	Skirt	£26.92 £22.43
214	HV532 19 91-45 Available to backorder	Clip	£0.90 £0.75
228	HV532 19 51-61 Available to backorder	Stud	£2.94 £2.45
234	HV532 40 47-42 Available to backorder	Damping Piece	£12.18 £10.15
235	HV532 40 61-29 Available to backorder	Spacer	£9.25 £7.71
236	HV873 93 05-00 Available to backorder	Nut	£2.30 £1.92
282	HV532 41 41-10 Available to backorder	Clip	£1.56 £1.30
