Husqvarna Lt135 - Chassis & Enclosures

Husqvarna Lt135 - Chassis & Enclosures

Description

Husqvarna Lt135

Model Year - 2002-03

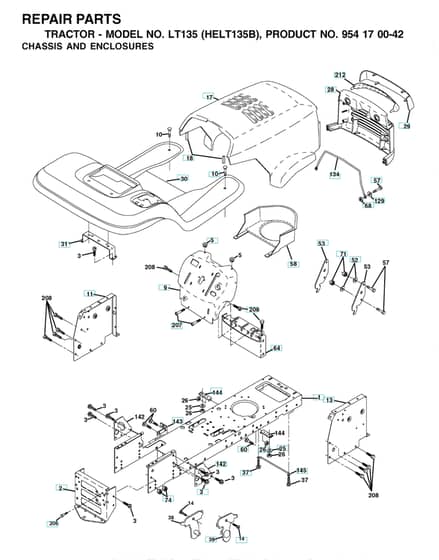

Chassis & Enclosures - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV532 17 46-19 Available to backorder	Frame		£370.08 £308.40
	2		HV532 17 65-54 Available to backorder	Plate		£42.80 £35.67
	14		HV817 49 06-08 Available to backorder	Screw		£5.24 £4.37
	30		HV532 18 05-07 Available to backorder	Fender		£284.52 £237.10
	37		HV817 49 05-08 Available to backorder	Screw		£3.59 £2.99
	38		HV532 17 57-10 Available to backorder	Bracket		£17.94 £14.95
	52		HV819 09 14-16 Available to backorder	Washer		£3.07 £2.56
	71		HV873 68 04-00 Available to backorder	Nut		£2.94 £2.45
	74		HV596 32 26-01 Available to backorder	Nut		£3.83 £3.19
	142		HV532 17 57-02 Available to backorder	Plate		£6.23 £5.19
	206		HV532 17 01-65 Available to backorder	Bolt		£5.24 £4.37
	208		HV817 67 06-08 Available to backorder	Screw		£5.24 £4.37

Description

Husqvarna Lt135

Model Year - 2002-03

Chassis & Enclosures - Parts Diagram
