Husqvarna Lt131 - Mower Deck & Cutting Deck

Name: Husqvarna Lt131 - Mower Deck & Cutting Deck
SKU: lt131_mower_deck_cutting_deck-group
Price: 1.68 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Lt131 - Mower Deck & Cutting Deck

Description

Husqvarna Lt131

Model Year -

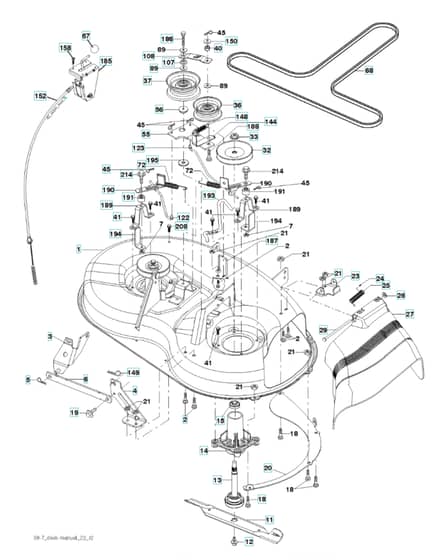

Mower Deck & Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV532 19 25-58 Available to backorder	Frein De Lame Cpt.	£22.96 £19.13
1	HV547 71 47-01 Available to backorder	Deck Shell	£256.32 £213.60
2	HV595 90 16-01 Available to backorder	Bolt	£4.30 £3.58
3	HV532 13 80-17 Available to backorder	Bracke	£20.06 £16.72
6	HV532 17 80-24 Available to backorder	Lever	£23.28 £19.40
7	HV596 04 05-01 Available to backorder	Lock Nut	£2.06 £1.72
12	HV584 30 93-01 In stock	Screw	£15.85 £13.21
18	HV596 13 64-01 Available to backorder	Bolt	£3.26 £2.72
19	HV532 13 28-27 Available to backorder	Spec. Bolt	£7.12 £5.93
20	HV531 17 04-01 Available to backorder	Baffle	£28.80 £24.00
23	HV532 19 25-57 Available to backorder	Hinge	£13.58 £11.32
24	HV532 10 53-04 Available to backorder	Hub Cap	£3.48 £2.90
25	HV532 19 70-26 In stock	Torsion Spring	£11.52 £9.60
26	HV532 11 04-52 Available to backorder	Nut	£2.02 £1.68
27	HV532 40 14-72 Available to backorder	Deflector	£51.84 £43.20
29	HV532 13 14-91 Available to backorder	Shaft	£9.46 £7.88
37	HV532 19 31-98 Available to backorder	Pulley	£34.44 £28.70
40	HV596 32 26-01 Available to backorder	Nut	£3.79 £3.16
41	HV584 95 39-01 Available to backorder	Bolt	£5.44 £4.53
55	HV532 13 38-40 Available to backorder	Lever	£27.18 £22.65
56	HV532 16 57-23 In stock	Spacer	£12.28 £10.23
67	HV532 10 69-32 Available to backorder	Knob	£10.36 £8.63
68	HV532 19 32-14 In stock	Belt	£62.76 £52.30
72	HV532 19 32-16 Available to backorder	Ressort Retour Frein De Lame	£8.40 £7.00
107	HV532 13 35-02 Available to backorder	Spacer	£7.12 £5.93
108	HV532 13 35-03 Available to backorder	Lever	£15.54 £12.95
122	HV532 41 01-89 Available to backorder	Rod	£13.58 £11.32
123	HV532 41 01-90 Available to backorder	Rod	£16.18 £13.48
144	HV532 19 34-14 Available to backorder	Belt Guide	£7.12 £5.93
148	HV532 16 90-22 Available to backorder	Spring	£5.04 £4.20
149	HV532 16 58-98 Available to backorder	Spring	£3.88 £3.23
152	HV532 19 32-35 Available to backorder	Cable	£79.48 £66.23
185	HV532 18 82-34 Available to backorder	Cable	£61.46 £51.22
186	HV596 56 40-05 Available to backorder	Screw	£6.43 £5.36
187	HV532 19 34-12 Available to backorder	Belt Guide	£7.76 £6.47
191	HV532 19 25-61 Available to backorder	Spacer	£11.00 £9.17
193	HV532 19 34-13 Available to backorder	Belt Guide	£14.22 £11.85
208	HV817 67 06-08 Available to backorder	Screw	£5.32 £4.43
