Husqvarna Lt125 - Mower Deck & Cutting Deck

Name: Husqvarna Lt125 - Mower Deck & Cutting Deck
SKU: lt125_2004_01_mower_deck_cutting_deck-group
Price: 1.74 GBP
Availability: InStock

Part No. lt125_2004_01_mower_deck_cutting_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Lt125 - Mower Deck & Cutting Deck

Description

Husqvarna Lt125

Model Year - 2004-01

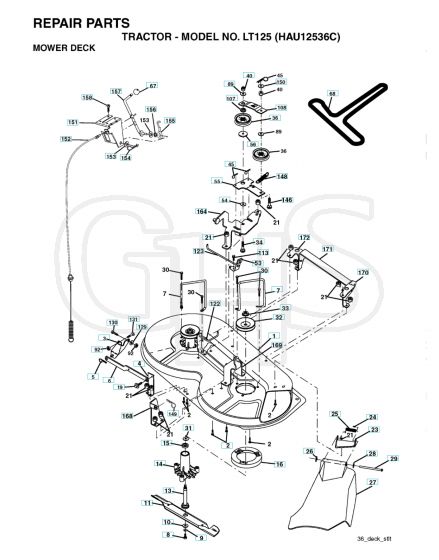

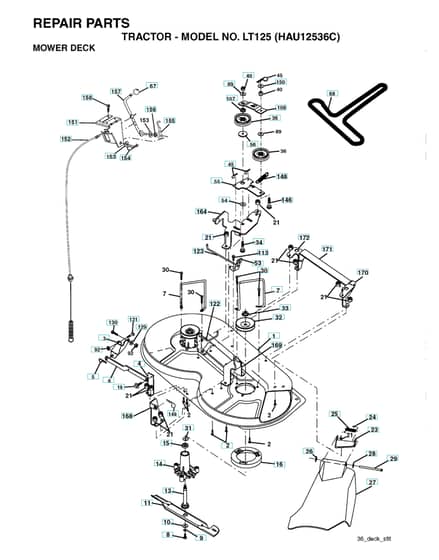

Mower Deck & Cutting Deck - Parts Diagram

	Part No.	Details
-1	HV532 13 07-94 Available to backorder	Mandrel	£159.60 £133.00
2	HV595 90 16-01 Available to backorder	Bolt	£4.22 £3.52
3	HV532 13 80-17 Available to backorder	Bracke	£19.88 £16.57
6	HV532 17 80-24 Available to backorder	Lever	£23.08 £19.23
7	HV532 14 06-08 Available to backorder	Holder	£18.60 £15.50
8	HV532 85 08-57 Available to backorder	Bolt	£6.70 £5.58
10	HV532 14 02-96 Available to backorder	Washer	£7.86 £6.55
11	HV532 13 84-96 Available to backorder	Ride On Blade	£24.11 £20.09
14	HV532 12 87-74 Available to backorder	Bearing Housing	£73.32 £61.10
15	HV532 11 04-85 In stock	Bearing	£9.24 £7.70
16	HV531 16 77-01 In stock	Stripper. Mandrel.Black	£13.69 £11.41
23	HV532 13 66-31 Available to backorder	Bracket	£14.74 £12.28
24	HV532 10 53-04 Available to backorder	Hub Cap	£3.52 £2.93
25	HV532 12 37-13 In stock	Spring	Was £11.34 £9.45 Special Price £8.16 £6.80
26	HV532 11 04-52 Available to backorder	Nut	£2.09 £1.74
34	HV872 11 06-14 Available to backorder	Bolt	£7.06 £5.88
40	HV596 32 26-01 Available to backorder	Nut	£3.83 £3.19
53	HV531 16 51-01 Available to backorder	Brake Lever	£10.07 £8.39
54	HV532 17 85-15 In stock	Washer	Was £8.88 £7.40 Special Price £5.82 £4.85
55	HV532 13 38-40 Available to backorder	Lever	£26.92 £22.43
56	HV532 16 57-23 In stock	Spacer	Was £12.28 £10.23 Special Price £8.48 £7.07
67	HV532 10 69-32 Available to backorder	Knob	£9.08 £7.57
89	HV819 13 16-12 Available to backorder	Washer	£4.63 £3.86
107	HV532 13 35-02 Available to backorder	Spacer	£7.06 £5.88
108	HV532 13 35-03 Available to backorder	Lever	£15.38 £12.82
113	HV817 49 05-08 Available to backorder	Screw	£3.59 £2.99
130	HV874 78 06-16 Available to backorder	Bolt	£6.29 £5.24
148	HV532 16 90-22 Available to backorder	Spring	£5.09 £4.24
149	HV532 16 58-98 Available to backorder	Spring	£3.84 £3.20
151	HV532 16 96-70 Available to backorder	Bracket	£19.21 £16.01
154	HV532 16 96-75 Available to backorder	Pin	£5.34 £4.45
155	HV548 92 72-01 In stock	Spring	£19.57 £16.31
156	HV532 16 96-72 Available to backorder	Spacer	£2.30 £1.92
157	HV532 16 96-69 Available to backorder	Control	£42.17 £35.14
171	HV532 16 52-37 Available to backorder	Rod	£28.24 £23.53
172	HV532 17 23-55 Available to backorder	Bracket	£15.91 £13.26
