Husqvarna Lt120 - Mower Deck & Cutting Deck

Name: Husqvarna Lt120 - Mower Deck & Cutting Deck
SKU: lt120_1998_01_mower_deck_cutting_deck-group
Price: 0.64 GBP
Availability: InStock

Part No. lt120_1998_01_mower_deck_cutting_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Lt120 - Mower Deck & Cutting Deck

Description

Husqvarna Lt120

Model Year - 1998-01

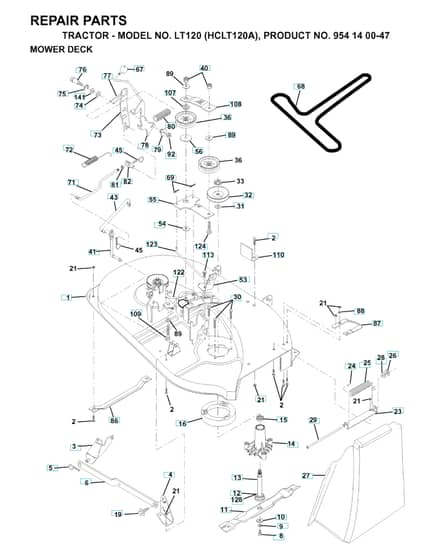

Mower Deck & Cutting Deck - Parts Diagram

	Part No.	Details
-1	HV532 13 07-94 Available to backorder	Mandrel	£159.60 £133.00
2	HV595 90 16-01 Available to backorder	Bolt	£4.22 £3.52
3	HV532 13 80-17 Available to backorder	Bracke	£19.88 £16.57
8	HV532 85 08-57 Available to backorder	Bolt	£6.70 £5.58
10	HV532 14 02-96 Available to backorder	Washer	£7.86 £6.55
11	HV532 13 41-48 Available to backorder	Ride On Blade	£31.55 £26.29
12	HV532 12 98-95 Available to backorder	Bearing	£9.28 £7.73
14	HV532 12 87-74 Available to backorder	Bearing Housing	£73.32 £61.10
15	HV532 11 04-85 In stock	Bearing	£9.24 £7.70
23	HV532 13 76-07 Available to backorder	Bracket	£17.32 £14.43
24	HV532 10 53-04 Available to backorder	Hub Cap	£3.52 £2.93
25	HV532 12 37-13 In stock	Spring	Was £11.34 £9.45 Special Price £8.16 £6.80
26	HV532 11 04-52 Available to backorder	Nut	£2.09 £1.74
27	HV532 10 67-36 Available to backorder	Deflector	£55.75 £46.46
40	HV596 32 26-01 Available to backorder	Nut	£3.83 £3.19
53	HV531 16 51-01 Available to backorder	Brake Lever	£10.07 £8.39
55	HV532 13 38-40 Available to backorder	Lever	£26.92 £22.43
67	HV532 16 21-32 Available to backorder	Knob	£10.26 £8.55
68	HV532 14 42-00 Available to backorder	Belt	£61.80 £51.50
74	HV532 12 17-48 Available to backorder	Washer	£6.00 £5.00
75	HV812 00 00-29 In stock	Retainer Ring	£0.77 £0.64
87	HV532 12 87-72 Available to backorder	Support	£14.27 £11.89
89	HV819 13 16-12 Available to backorder	Washer	£4.63 £3.86
107	HV532 13 35-02 Available to backorder	Spacer	£7.06 £5.88
108	HV532 13 35-03 Available to backorder	Lever	£15.38 £12.82
122	HV532 13 12-89 Available to backorder	Brake Lever	£8.34 £6.95
124	HV872 11 06-14 Available to backorder	Bolt	£7.06 £5.88
128	HV532 15 33-90 Available to backorder	Gasket	£4.63 £3.86
