Husqvarna Lt120 - Drive

Name: Husqvarna Lt120 - Drive
SKU: lt120_1998_01_drive-group
Price: 0.47 GBP
Availability: InStock

Part No. lt120_1998_01_drive-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna Lt120

Model Year - 1998-01

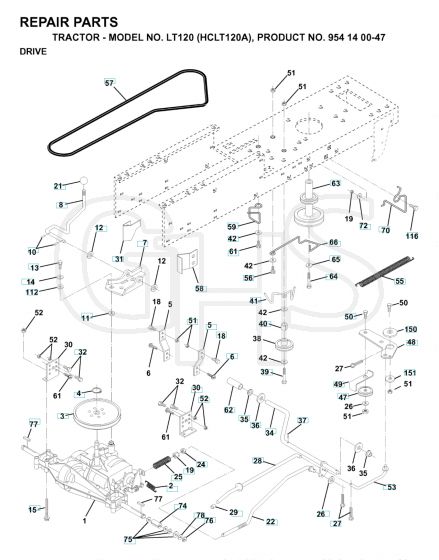

Drive - Parts Diagram

	Part No.	Details
2	HV532 14 66-82 Available to backorder	Spring	£4.12 £3.43
3	HV532 12 36-66 Available to backorder	Pulley	£88.92 £74.10
4	HV812 00 00-28 Available to backorder	Clip	£0.56 £0.47
5	HV532 12 15-20 Available to backorder	Bracket	£14.74 £12.28
7	HV532 16 22-40 Available to backorder	Bracket	£12.18 £10.15
8	HV532 13 16-79 Available to backorder	Lever	£24.00 £20.00
10	HV876 02 04-16 Available to backorder	Split Pin	£1.87 £1.56
14	HV596 02 98-01 Available to backorder	Washer	£2.44 £2.03
15	HV874 49 05-44 Available to backorder	Screw	£7.06 £5.88
18	HV874 78 06-16 Available to backorder	Bolt	£6.29 £5.24
21	HV532 12 12-74 Available to backorder	Knob	£10.90 £9.08
22	HV532 13 08-04 In stock	Rod	Was £29.66 £24.72 Special Price £21.36 £17.80
29	HV532 07 16-73 Available to backorder	Cover	£3.65 £3.04
30	HV532 13 08-07 Available to backorder	Bracket	£28.20 £23.50
35	HV532 12 01-83 Available to backorder	Bearing	£6.29 £5.24
36	HV819 21 16-16 Available to backorder	Washer	£2.83 £2.36
40	HV532 12 49-65 Available to backorder	Spacer	£5.51 £4.59
48	HV532 15 44-07 Available to backorder	Guide	£8.45 £7.04
49	HV532 12 32-05 Available to backorder	Belt Guide	£7.06 £5.88
51	HV596 32 26-01 Available to backorder	Nut	£3.83 £3.19
55	HV532 10 57-09 Available to backorder	Spring	£16.97 £14.14
65	HV810 04 07-00 Available to backorder	Washer	£3.12 £2.60
66	HV531 15 10-01 Available to backorder	Tensioner	£15.00 £12.50
70	HV532 13 46-83 Available to backorder	Belt Guide	£12.82 £10.68
75	HV532 12 17-49 In stock	Washer	£2.82 £2.35
76	HV812 00 00-01 Available to backorder	Retainer Ring	£0.77 £0.64
77	HV532 12 35-83 In stock	Key	£7.18 £5.98
78	HV532 12 17-48 Available to backorder	Washer	£6.00 £5.00
