Husqvarna Lt100 - Mower Deck & Cutting Deck

Description

Husqvarna Lt100

Model Year - 1995-03

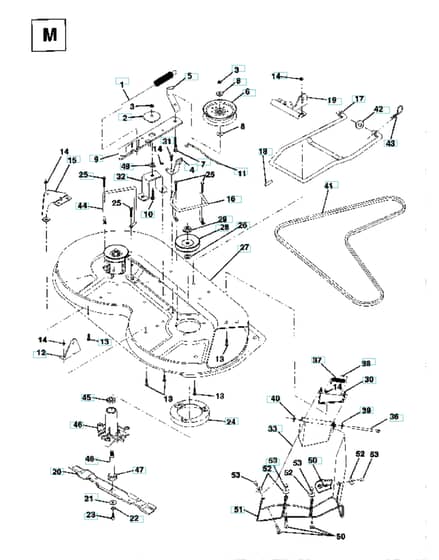

Mower Deck & Cutting Deck - Parts Diagram

	Part No.	Details
-1	HV532 13 07-94 Available to backorder	Mandrel	£159.60 £133.00
1	HV532 14 00-64 Available to backorder	Spring	£17.11 £14.26
3	HV596 32 26-01 Available to backorder	Nut	£3.83 £3.19
4	HV531 16 51-01 Available to backorder	Brake Lever	£10.07 £8.39
6	HV532 12 13-16 Available to backorder	Pulley	£81.36 £67.80
7	HV872 11 06-16 Available to backorder	Bolt	£7.06 £5.88
11	HV532 13 08-41 Available to backorder	Arm	£8.98 £7.48
12	HV532 12 73-56 Available to backorder	Bracket	£5.40 £4.50
13	HV595 90 16-01 Available to backorder	Bolt	£4.22 £3.52
20	HV532 13 84-96 Available to backorder	Ride On Blade	£24.11 £20.09
21	HV532 14 02-96 Available to backorder	Washer	£7.86 £6.55
23	HV532 85 08-57 Available to backorder	Bolt	£6.70 £5.58
30	HV532 13 66-31 Available to backorder	Bracket	£14.74 £12.28
31	HV817 49 05-08 Available to backorder	Screw	£3.59 £2.99
32	HV532 12 20-51 Available to backorder	Holder	£9.73 £8.11
37	HV532 12 37-13 In stock	Spring	Was £11.34 £9.45 Special Price £8.16 £6.80
38	HV532 10 53-04 Available to backorder	Hub Cap	£3.52 £2.93
40	HV532 11 04-52 Available to backorder	Nut	£2.09 £1.74
41	HV532 13 12-64 Available to backorder	Belt	£57.74 £48.12
44	HV532 14 06-08 Available to backorder	Holder	£18.60 £15.50
45	HV532 11 04-85 In stock	Bearing	£9.24 £7.70
46	HV532 12 87-74 Available to backorder	Bearing Housing	£73.32 £61.10
47	HV532 12 98-95 Available to backorder	Bearing	£9.28 £7.73
51	HV532 13 63-83 Available to backorder	Protector	£73.08 £60.90
52	HV734 11 46-01 Available to backorder	Washer	£2.30 £1.92
53	HV532 14 59-90 Available to backorder	Nut	£1.67 £1.39
