Husqvarna Lrh130 - Transmission

Husqvarna Lrh130 - Transmission

Description

Husqvarna Lrh130

Model Year - 2003-01

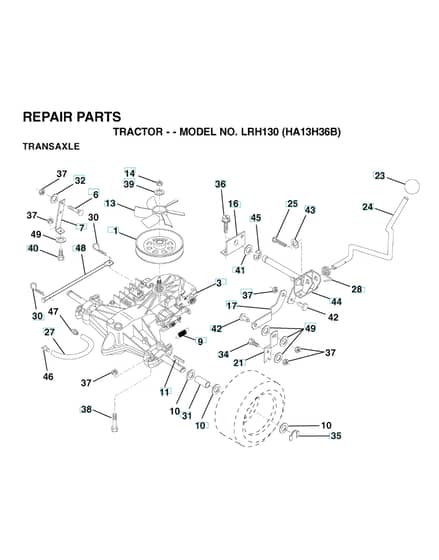

Transmission - Parts Diagram

Ref.		Img.	Part No.	Details
	6		HV595 90 16-01 Available to backorder	Bolt		£4.22 £3.52
	9		HV532 14 66-82 Available to backorder	Spring		£4.12 £3.43
	10		HV532 12 17-49 In stock	Washer		£2.82 £2.35
	11		HV532 12 35-83 In stock	Key		£7.18 £5.98
	13		HV532 14 07-78 Available to backorder	Fan		£14.27 £11.89
	23		HV532 12 12-74 Available to backorder	Knob		£10.90 £9.08
	25		HV876 02 04-16 Available to backorder	Split Pin		£1.87 £1.56
	28		HV532 14 07-72 Available to backorder	Spring		£5.51 £4.59
	35		HV812 00 00-01 Available to backorder	Retainer Ring		£0.77 £0.64
	37		HV596 04 05-01 Available to backorder	Lock Nut		£2.03 £1.69
	38		HV874 49 05-40 Available to backorder	Bolt		£7.06 £5.88
	39		HV819 17 19-12 Available to backorder	Washer		£4.63 £3.86
	45		HV812 00 00-02 Available to backorder	Retainer Ring		£0.77 £0.64

Description

Husqvarna Lrh130

Model Year - 2003-01

Transmission - Parts Diagram
