Husqvarna Lr122 - Mower Deck & Cutting Deck

Description

Husqvarna Lr122

Model Year - 2000-01

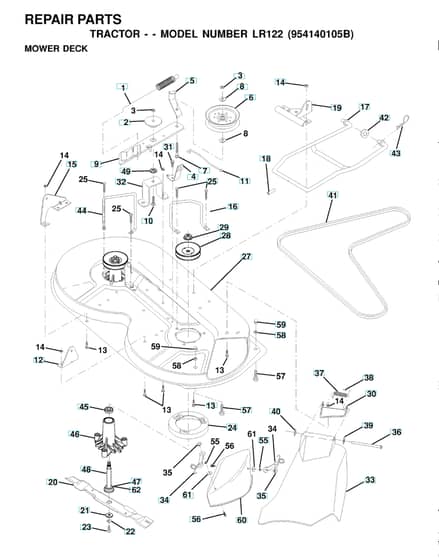

Mower Deck & Cutting Deck - Parts Diagram

	Part No.	Details
1	HV532 14 00-64 Available to backorder	Spring	£17.11 £14.26
0	HV532 15 68-66 Available to backorder	Housing	£593.84 £494.87
1	HV532 13 07-94 Available to backorder	Mandrel	£159.60 £133.00
2	HV532 16 57-23 In stock	Spacer	Was £12.28 £10.23 Special Price £8.48 £7.07
3	HV596 32 26-01 Available to backorder	Nut	£3.83 £3.19
4	HV531 16 51-01 Available to backorder	Brake Lever	£10.07 £8.39
6	HV532 12 13-16 Available to backorder	Pulley	£81.36 £67.80
7	HV872 11 06-16 Available to backorder	Bolt	£7.06 £5.88
11	HV532 13 08-41 Available to backorder	Arm	£8.98 £7.48
12	HV532 12 73-56 Available to backorder	Bracket	£5.40 £4.50
13	HV595 90 16-01 Available to backorder	Bolt	£4.22 £3.52
16	HV532 15 32-98 In stock	Holder	Was £21.83 £18.19 Special Price £4.79 £3.99
20	HV532 14 01-01 Available to backorder	Ride On Blade	£30.23 £25.19
21	HV532 14 02-96 Available to backorder	Washer	£7.86 £6.55
23	HV532 85 08-57 Available to backorder	Bolt	£6.70 £5.58
30	HV532 13 66-31 Available to backorder	Bracket	£14.74 £12.28
31	HV817 49 05-08 Available to backorder	Screw	£3.59 £2.99
32	HV532 12 20-51 Available to backorder	Holder	£9.73 £8.11
34	HV597 00 06-01 In stock	Latch	£9.79 £8.16
37	HV532 12 37-13 In stock	Spring	Was £11.34 £9.45 Special Price £8.16 £6.80
38	HV532 10 53-04 Available to backorder	Hub Cap	£3.52 £2.93
40	HV532 11 04-52 Available to backorder	Nut	£2.09 £1.74
41	HV532 13 12-64 Available to backorder	Belt	£57.74 £48.12
44	HV532 14 06-08 Available to backorder	Holder	£18.60 £15.50
45	HV532 11 04-85 In stock	Bearing	£9.24 £7.70
46	HV532 12 87-74 Available to backorder	Bearing Housing	£73.32 £61.10
47	HV532 12 98-95 Available to backorder	Bearing	£9.28 £7.73
55	HV810 07 10-00 Available to backorder	Washer	£2.56 £2.13
58	HV596 04 05-01 Available to backorder	Lock Nut	£2.03 £1.69
61	HV819 06 12-16 Available to backorder	Washer	£2.83 £2.36
62	HV532 15 33-90 Available to backorder	Gasket	£4.63 £3.86
