Husqvarna Lr121 - Transmission

Husqvarna Lr121 - Transmission

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Lr121 - Transmission

Husqvarna Lr121 - Transmission

Description

Husqvarna Lr121

Model Year - 1997-01

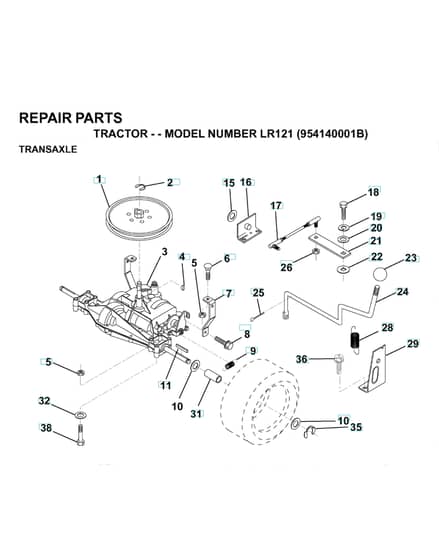

Transmission - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HV532 12 33-85 Available to backorder	Pulley		£86.38 £71.98
	2		HV812 00 00-28 Available to backorder	Clip		£0.64 £0.53
	4		HV532 12 50-96 Available to backorder	Woodruff Key		£8.40 £7.00
	6		HV595 90 16-01 Available to backorder	Bolt		£4.30 £3.58
	9		HV532 14 66-82 Available to backorder	Spring		£4.14 £3.45
	10		HV532 12 17-49 In stock	Washer		£3.28 £2.73
	11		HV532 12 35-83 Available to backorder	Key		£7.03 £5.86
	19		HV596 02 98-01 Available to backorder	Washer		£2.44 £2.03
	23		HV532 10 69-33 Available to backorder	Knob		£10.36 £8.63
	25		HV876 02 04-16 Available to backorder	Split Pin		£1.86 £1.55
	28		HV532 12 80-85 Available to backorder	Spring		£3.34 £2.78
	31		HV532 13 70-57 Available to backorder	Spacer		£9.52 £7.93
	35		HV812 00 00-01 Available to backorder	Retainer Ring		£0.77 £0.64
	38		HV874 49 05-44 Available to backorder	Screw		£7.12 £5.93

Description

Husqvarna Lr121

Model Year - 1997-01

Transmission - Parts Diagram
