Husqvarna Lr100 - Seat

Husqvarna Lr100 - Seat

Part No. lr100_1995_03_seat-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Lr100 - Seat

Husqvarna Lr100 - Seat

Description

Husqvarna Lr100

Model Year - 1995-03

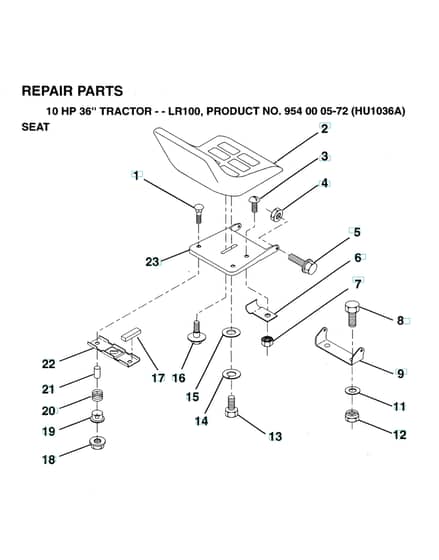

Seat - Parts Diagram

Ref.		Img.	Part No.	Details
	12		HV596 32 26-01 Available to backorder	Nut		£3.83 £3.19
	14		HV810 04 08-00 Available to backorder	Washer		£4.36 £3.63
	15		HV819 17 19-12 Available to backorder	Washer		£4.63 £3.86
	16		HV532 12 70-18 Available to backorder	Bolt		£7.06 £5.88
	19		HV532 12 12-48 Available to backorder	Bushing		£6.01 £5.01
	20		HV532 12 12-50 Available to backorder	Spring		£4.50 £3.75
	21		HV532 13 43-00 Available to backorder	Spacer		£4.50 £3.75

Description

Husqvarna Lr100

Model Year - 1995-03

Seat - Parts Diagram
