Husqvarna Lg2654 - Engine

Name: Husqvarna Lg2654 - Engine
SKU: lg2654_2013_09_engine-group
Price: 0.64 GBP
Availability: InStock

Description

Husqvarna Lg2654

Model Year - 2013-09

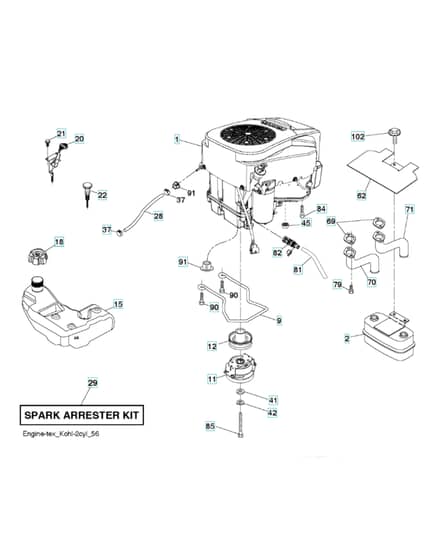

Engine - Parts Diagram

	Part No.	Details
2	HV589 81 87-01 Available to backorder	Muffler	£135.60 £113.00
11	HV587 24 14-01 Available to backorder	Clutch	£447.60 £373.00
18	HV585 12 48-01 Available to backorder	Fuel Cap Assyfits 2.75" Filler Neck	£31.04 £25.87
21	HV532 41 63-58 Available to backorder	Screw	£2.06 £1.72
22	HV532 19 15-96 Available to backorder	Comma*Rpl.Par 532187767428	£38.18 £31.82
29	HV532 13 71-80 Available to backorder	Spark Arrester Kit	£47.16 £39.30
37	HV532 12 34-87 Available to backorder	Hose Clamp	£0.77 £0.64
41	HV532 12 61-97 Available to backorder	Washer	£14.88 £12.40
42	HV810 04 07-00 Available to backorder	Washer	£3.18 £2.65
62	HV532 43 40-17 Available to backorder	Shield	£22.64 £18.87
79	HV596 13 42-01 Available to backorder	Screw	£3.96 £3.30
82	HV532 42 82-87 Available to backorder	Plug	£14.59 £12.16
84	HV817 12 06-16 Available to backorder	Screw	£5.32 £4.43
85	HV501 60 69-01 Available to backorder	Bolt	£3.24 £2.70
90	HV817 00 06-16 Available to backorder	Screw	£6.34 £5.28
91	HV532 18 74-95 Available to backorder	Bushing	£9.06 £7.55
