Husqvarna LC56 - Drive

Name: Husqvarna LC56 - Drive
SKU: lc56_drive-group
Price: 0.64 GBP
Availability: InStock

Part No. lc56_drive-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna LC56

Model Year -

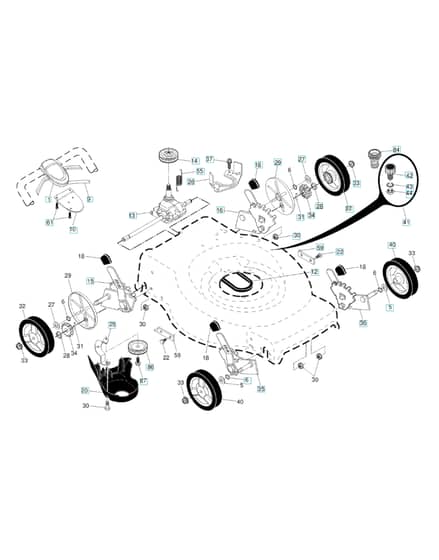

Drive - Parts Diagram

	Part No.	Details
1	HV532 43 09-95 Available to backorder	Control	£60.58 £50.48
5	HV532 08 83-48 Available to backorder	Washer	£2.30 £1.92
6	HV532 19 74-80 Available to backorder	O-Ring	£3.82 £3.18
9	HV532 43 16-50 Available to backorder	Drive Cable	£31.45 £26.21
10	HV532 43 27-90 Available to backorder	Bracket	£11.38 £9.48
13	HV581 68 08-01 Available to backorder	Transmission	£126.36 £105.30
15	HV532 43 78-73 Available to backorder	Adjusterrh	£24.42 £20.35
16	HV532 43 78-74 Available to backorder	Adjusterlh	£40.38 £33.65
18	HV532 70 10-37 Available to backorder	Knob	£5.02 £4.18
20	HV580 80 69-01 Available to backorder	Belt Cover	£25.00 £20.83
22	HV817 00 05-10 Available to backorder	Bolt	£3.59 £2.99
26	HV532 42 60-66 Available to backorder	Keeper	£14.93 £12.44
27	HV532 06 77-25 Available to backorder	Washer	£8.98 £7.48
28	HV812 00 00-58 Available to backorder	E-Clip	£0.77 £0.64
29	HV581 84 04-01 Available to backorder	Dust Cover	£9.62 £8.02
30	HV532 19 17-30 Available to backorder	Nut	£2.30 £1.92
31	HV532 40 48-45 Available to backorder	Pawl. Drive	£6.52 £5.43
32	HV581 68 51-01 Available to backorder	Wheel	£22.57 £18.81
33	HV532 40 91-48 Available to backorder	Nut	£3.60 £3.00
34	HV532 40 48-35 Available to backorder	Pinion	£13.08 £10.90
37	HV532 16 34-09 Available to backorder	Screw	£1.56 £1.30
41	HV532 43 84-89 Available to backorder	Kit	£25.00 £20.83
55	HV581 35 13-01 Available to backorder	Spring	£3.73 £3.11
59	HV532 44 21-13 Available to backorder	Bracket	£5.63 £4.69
61	HV532 18 16-98 Available to backorder	Screw	£1.79 £1.49
87	HV581 12 76-01 Available to backorder	Screw	£2.05 £1.71
