Husqvarna LC221RH - Mower Deck & Cutting Deck

Description

Husqvarna LC221RH

Model Year - 2016-10

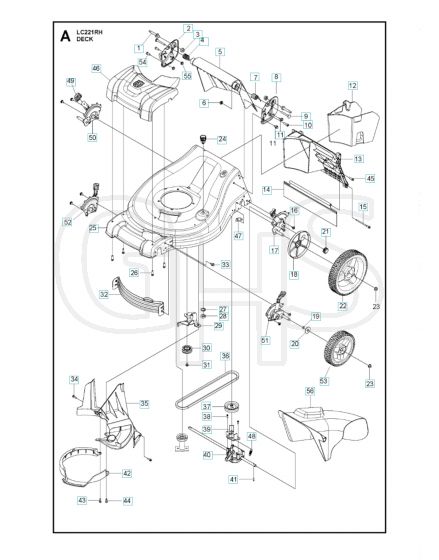

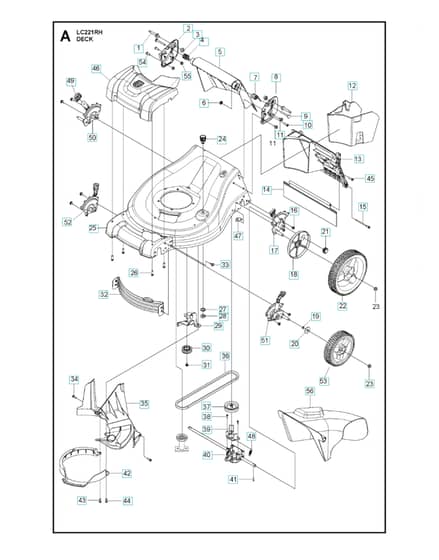

Mower Deck & Cutting Deck - Parts Diagram

	Part No.	Details
15	HV587 43 82-01 Available to backorder	Screw"Hi-Lo. 5/16-14 X 4.10"	£2.56 £2.13
19	HV532 19 74-80 Available to backorder	O-Ring	£3.82 £3.18
20	HV532 06 77-25 Available to backorder	Washer1/2 X 1-1/2 X .134	£8.98 £7.48
23	HV532 40 91-48 Available to backorder	Nut"Hex Flange. 3/8-16"	£3.60 £3.00
30	HV587 96 92-01 Available to backorder	Pulley"Pulley. Idler"	£21.05 £17.54
31	HV581 12 76-01 Available to backorder	Screw1/4-20 Tri-Lobe	£2.05 £1.71
33	HV817 00 05-10 Available to backorder	Bolt"Hex. 5/16"	£3.59 £2.99
37	HV586 96 30-01 Available to backorder	Pulley"Transmisson. Rwd"	£69.60 £58.00
38	HV532 16 34-09 Available to backorder	Screw"12 X 5/8. Hi/Lo Thread"	£1.56 £1.30
41	HV532 40 48-45 Available to backorder	Pawl. Drivedrive	£6.52 £5.43
44	HV581 72 61-01 Available to backorder	Bolt"Shoulder. 1/4-20 Tri-Lobe"	£3.32 £2.77
45	HV584 29 94-01 Available to backorder	Screw Ehhft"Hi-Lo. 5/16 X 1.00"	£3.23 £2.69
48	HV581 35 13-01 Available to backorder	Springrear Transmission	£3.73 £3.11
49	HV532 70 10-37 Available to backorder	Knobergonomic	£5.02 £4.18
54	HV874 78 05-12 Available to backorder	Screw5/16 - 18 X .750	£2.99 £2.49
