Husqvarna LC221AH - Mower Deck & Cutting Deck

Name: Husqvarna LC221AH - Mower Deck & Cutting Deck
SKU: lc221ah_2019_08_mower_deck_cutting_deck-group
Price: 0.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna LC221AH - Mower Deck & Cutting Deck

Description

Husqvarna LC221AH

Model Year - 2019-08

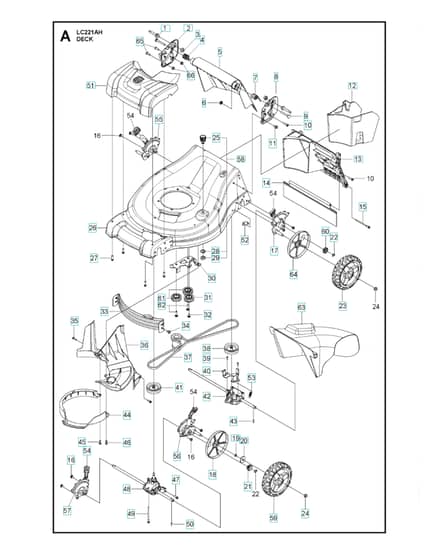

Mower Deck & Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
18	HV581 84 04-01 Available to backorder	Dust Cover"Wheel. Front"	£9.72 £8.10
19	HV532 19 74-80 Available to backorder	O-Ring	£3.84 £3.20
20	HV532 06 77-25 Available to backorder	Washer1/2 X 1-1/2 X .134	£9.06 £7.55
21	HV532 40 48-35 Available to backorder	Pinion"14 Tooth. Awd"	£12.96 £10.80
22	HV812 00 00-58 Available to backorder	E-Clip"7/16. Re-Style"	£0.77 £0.64
24	HV532 40 91-48 Available to backorder	Nut"Hex Flange. 3/8-16"	£3.48 £2.90
32	HV581 12 76-01 Available to backorder	Screw1/4-20 Tri-Lobe	£2.06 £1.72
34	HV817 00 05-10 Available to backorder	Bolt"Hex. 5/16"	£3.62 £3.02
37	HV580 36 46-09 Available to backorder	Belt"Drive. Awd"	£27.74 £23.12
39	HV532 16 34-09 Available to backorder	Screw"12 X 5/8. Hi/Lo Thread"	£1.56 £1.30
40	HV581 15 25-02 Available to backorder	Bracketrear Transmission	£12.94 £10.78
41	HV586 96 30-01 Available to backorder	Pulley"Transmission. Awd"	£72.72 £60.60
46	HV581 72 61-01 Available to backorder	Bolt"Shoulder. 1/4-20 Tri-Lobe"	£3.36 £2.80
47	HV584 29 94-01 Available to backorder	Screw Ehhft"Hi-Lo. 5/16 X 1.00"	£3.12 £2.60
49	HV587 43 82-01 Available to backorder	Screw"Hi-Lo. 5/16-14 X 4.10"	£2.58 £2.15
50	HV532 40 48-45 Available to backorder	Pawl. Drivedrive	£6.30 £5.25
53	HV581 35 13-01 Available to backorder	Spring"Return. Rear Transmission"	£3.76 £3.13
54	HV532 70 10-37 Available to backorder	Knobergonomic	£5.82 £4.85
58	HV532 42 11-14 Available to backorder	Water Connectorkit	£24.88 £20.73
59	HV580 36 53-01 Available to backorder	Wheel8 X 2	£21.59 £17.99
61	HV587 97 30-01 Available to backorder	Pulley	£9.86 £8.22
62	HV581 33 45-01 Available to backorder	Bolt	£3.12 £2.60
65	HV874 78 05-12 Available to backorder	Screw	£3.04 £2.53
