Husqvarna LC 551VQ - 970609401 - Engine

Name: Husqvarna LC 551VQ - 970609401 - Engine
SKU: LC_551VQ_970609401_DP_643207_HighResPng-group
Price: 1.48 GBP
Availability: InStock

Part No. LC_551VQ_970609401_DP_643207_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

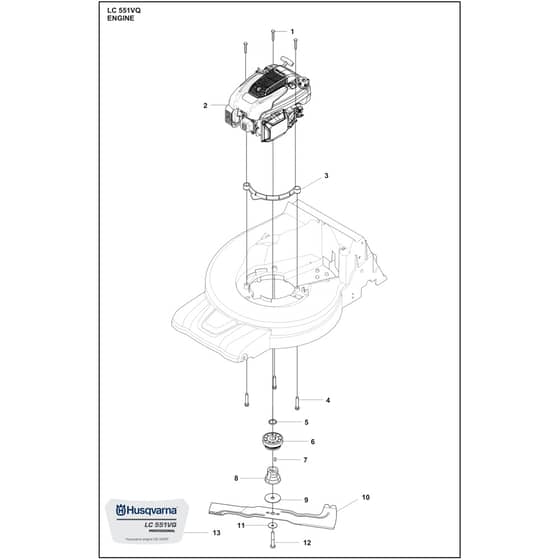

Husqvarna LC 551VQ - 970609401 - Engine - Parts Diagram

	Part No.	Details
1	HV725 24 62-51 Available to backorder	Screw Ehhm	£6.29 £5.24
2	HV536 65 03-02 Available to backorder	Engine	£473.28 £394.40
3	HV531 20 63-08 Available to backorder	Pawl	£14.27 £11.89
4	HV531 21 38-45 Available to backorder	Screw	£1.78 £1.48
5	HV582 35 69-03 Available to backorder	Sleeve	£8.86 £7.38
6	HV582 17 89-01 Available to backorder	Pulley Assy	£36.29 £30.24
7	HV504 46 05-01 Available to backorder	Woodruf Key	£5.60 £4.67
8	HV501 88 28-02 Available to backorder	Blade Support	£26.05 £21.71
9	HV503 25 94-01 In stock	Washer	£3.50 £2.92
10	HV587 59 08-10 Available to backorder	Blade	£34.21 £28.51
11	HV503 33 25-01 In stock	Spring	£5.63 £4.69
12	HV504 45 64-02 Available to backorder	Screw Ehhi	£7.18 £5.98
13	HV536 83 34-07 Available to backorder	Decal	£3.77 £3.14
