Husqvarna LC 551VQ - 970609401 - Chassis

Name: Husqvarna LC 551VQ - 970609401 - Chassis
SKU: LC_551VQ_970609401_JZ_732990_HighResPng-group
Price: 0.5 GBP
Availability: InStock

Part No. LC_551VQ_970609401_JZ_732990_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna LC 551VQ - 970609401 - Chassis

Description

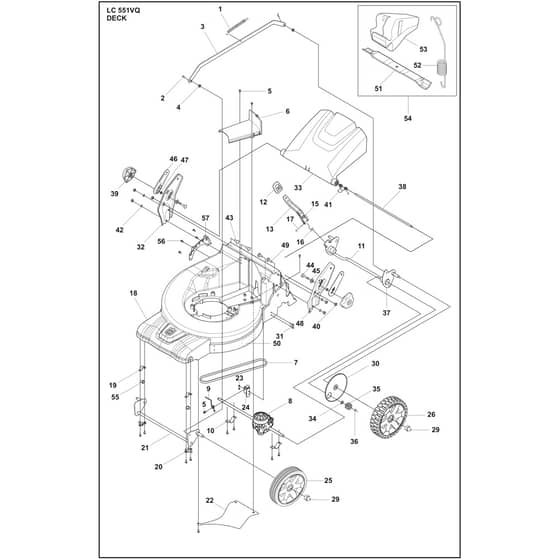

Husqvarna LC 551VQ - 970609401 - Chassis - Parts Diagram

	Part No.	Details
1	HV531 20 57-15 Available to backorder	Spring	£8.96 £7.47
2	HV531 20 66-53 In stock	Pin	£3.91 £3.26
3	HV587 19 85-01 Available to backorder	Rod	£35.88 £29.90
4	HV501 62 25-01 Available to backorder	Bushing	£5.78 £4.82
5	HV531 20 73-85 Available to backorder	Screw	£1.79 £1.49
6	HV531 21 32-25 Available to backorder	Cover	£7.14 £5.95
7	HV589 32 46-05 In stock	Drive Belt	£23.35 £19.46
8	HV582 14 17-01 Available to backorder	Gearbox	£216.97 £180.81
9	HV589 66 94-01 Available to backorder	Wire Guide	£7.06 £5.88
10	HV531 20 66-52 Available to backorder	Support	£1.45 £1.21
11	HV587 19 80-02 Available to backorder	Axle	£85.68 £71.40
12	HV581 74 67-01 Available to backorder	Knob	£6.40 £5.33
13	HV581 17 86-02 Available to backorder	Lever Assy	£12.98 £10.82
15	HV587 19 84-01 Available to backorder	Pin	£3.84 £3.20
16	HV583 95 13-02 Available to backorder	Spring	£4.36 £3.63
17	HV587 19 82-01 Available to backorder	Pin	£5.63 £4.69
18	HV587 19 75-04 Available to backorder	Chassis	£378.24 £315.20
19	HV501 07 89-01 Available to backorder	Support	£7.06 £5.88
20	HV591 16 26-01 Available to backorder	Support	£6.40 £5.33
21	HV587 19 81-01 Available to backorder	Axle	£75.84 £63.20
22	HV501 96 60-01 Available to backorder	Deflector	£37.84 £31.53
23	HV732 25 14-01 Available to backorder	Hexagon Locking Nut	£2.45 £2.04
24	HV582 14 12-01 Available to backorder	Bracket	£10.90 £9.08
25	HV536 61 97-01 Available to backorder	Wheel Assy	£36.56 £30.47
26	HV536 61 96-01 In stock	Wheel Assy	£46.91 £39.09
29	HV536 70 68-01 Available to backorder	Nut	£2.26 £1.88
30	HV587 19 79-01 Available to backorder	Dust Cover	£9.62 £8.02
31	HV725 23 31-51 Available to backorder	Screw	£1.79 £1.49
32	HV587 19 67-02 Available to backorder	Handle Support	£41.02 £34.18
33	HV587 19 72-01 Available to backorder	Hatch	£42.94 £35.78
34	HV577 09 28-01 Available to backorder	Washer	£0.60 £0.50
35	HV544 34 23-01 Available to backorder	Pinion	£10.57 £8.81
37	HV584 40 46-01 Available to backorder	Ball Bearing	£6.31 £5.26
38	HV587 19 73-01 Available to backorder	Rod	£10.54 £8.78
39	HV587 23 72-01 In stock	Knob	£13.69 £11.41
40	HV732 21 18-01 In stock	Lock Nut	£2.38 £1.98
41	HV501 32 25-01 Available to backorder	Spring	£5.40 £4.50
42	HV734 11 64-01 Available to backorder	Washer	£2.29 £1.91
43	HV588 87 75-01 Available to backorder	Screw	£1.79 £1.49
44	HV588 15 73-01 Available to backorder	Bolt	£1.84 £1.53
45	HV588 15 74-01 Available to backorder	Washer	£2.30 £1.92
46	HV587 78 04-01 Available to backorder	Washer	£5.40 £4.50
47	HV731 43 18-01 Available to backorder	Hexagon Thin Nut	£2.03 £1.69
48	HV587 19 68-02 Available to backorder	Handle Support	£31.42 £26.18
49	HV531 20 49-21 Available to backorder	Screw	£5.02 £4.18
50	HV584 80 53-01 Available to backorder	Label	£3.89 £3.24
51	HV589 57 22-20 Available to backorder	Mower Blade	£34.24 £28.53
52	HV531 20 58-31 Available to backorder	Mulch Plug	£5.24 £4.37
53	HV531 21 32-26 Available to backorder	Plug	£29.18 £24.32
55	HV590 37 36-01 Available to backorder	Blade Bushing	£31.45 £26.21
56	HV531 20 78-56 Available to backorder	Screw	£1.56 £1.30
57	HV589 93 49-01 Available to backorder	Height Adjuster	£12.18 £10.15
58	HV597 69 42-01 Available to backorder	Variator	£65.40 £54.50
