Husqvarna LC 551iV - 970626001 - Chassis

Description

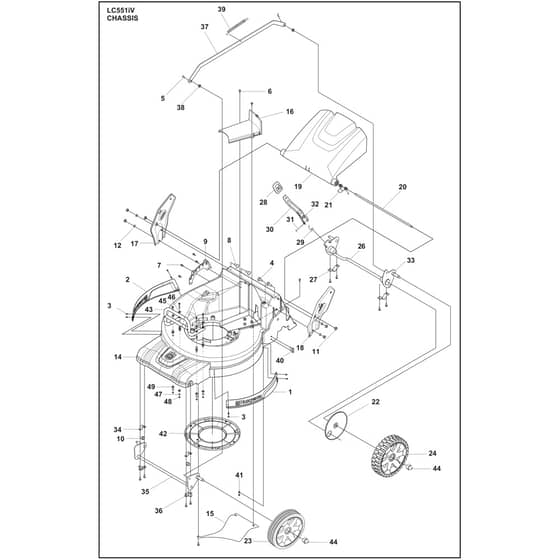

Husqvarna LC 551iV - 970626001 - Chassis - Parts Diagram

	Part No.	Details
1	HV582 22 90-01 Available to backorder	Bumper	£20.50 £17.08
2	HV582 22 90-02 Available to backorder	Bumper	£22.44 £18.70
3	HV722 78 54-02 Available to backorder	Rivet	£2.94 £2.45
4	HV531 20 49-21 Available to backorder	Screw	£5.02 £4.18
5	HV531 20 66-53 In stock	Pin	£3.91 £3.26
6	HV531 20 73-85 Available to backorder	Screw	£1.79 £1.49
7	HV531 20 78-56 Available to backorder	Screw	£1.56 £1.30
8	HV588 87 75-01 Available to backorder	Screw (M8 X 20)	£1.79 £1.49
9	HV589 93 49-01 Available to backorder	Height Adjuster	£12.18 £10.15
10	HV590 37 36-01 Available to backorder	Blade Bushing	£31.45 £26.21
11	HV732 21 18-01 In stock	Lock Nut (M8)	£2.38 £1.98
12	HV734 11 64-01 Available to backorder	Washer	£2.29 £1.91
14	HV587 19 75-04 Available to backorder	Chassis	£378.24 £315.20
15	HV501 96 60-01 Available to backorder	Deflector	£37.84 £31.53
16	HV531 21 32-25 Available to backorder	Cover	£7.14 £5.95
17	HV587 19 67-02 Available to backorder	Handle Support	£41.02 £34.18
18	HV587 19 68-02 Available to backorder	Handle Support	£31.42 £26.18
19	HV587 19 72-02 Available to backorder	Hatch	£46.08 £38.40
20	HV587 19 73-01 Available to backorder	Rod	£10.54 £8.78
21	HV501 32 25-01 Available to backorder	Spring	£5.40 £4.50
22	HV587 19 79-01 Available to backorder	Dust Cover	£9.62 £8.02
23	HV536 61 97-01 Available to backorder	Wheel Assy	£36.56 £30.47
24	HV536 61 96-01 In stock	Wheel Assy	£46.91 £39.09
26	HV587 19 80-02 Available to backorder	Axle	£85.68 £71.40
27	HV531 20 66-52 Available to backorder	Support	£1.45 £1.21
28	HV581 74 67-01 Available to backorder	Knob	£6.40 £5.33
29	HV583 95 13-02 Available to backorder	Spring	£4.36 £3.63
30	HV581 17 86-02 Available to backorder	Lever Assy	£12.98 £10.82
31	HV587 19 82-02 Available to backorder	Pin	£5.63 £4.69
32	HV587 19 84-01 Available to backorder	Pin	£3.84 £3.20
33	HV584 40 46-01 Available to backorder	Ball Bearing	£6.31 £5.26
34	HV501 07 89-01 Available to backorder	Support	£7.06 £5.88
35	HV587 19 81-01 Available to backorder	Axle	£75.84 £63.20
36	HV591 16 26-01 Available to backorder	Support	£6.40 £5.33
37	HV587 19 85-01 Available to backorder	Rod	£35.88 £29.90
38	HV501 62 25-01 Available to backorder	Bushing	£5.78 £4.82
39	HV531 20 57-15 Available to backorder	Spring	£8.96 £7.47
40	HV725 23 31-51 Available to backorder	Screw	£1.79 £1.49
41	HV732 25 14-01 Available to backorder	Hexagon Locking Nut (M5)	£2.45 £2.04
42	HV582 86 67-01 Available to backorder	Clutch Cover	£24.79 £20.66
43	HV599 23 31-02 Available to backorder	Guard (For 970626001)	£54.34 £45.28
44	HV536 70 68-01 Available to backorder	Nut	£2.26 £1.88
46	HV514 02 66-00 In stock	Washer (For 970626001)	£2.50 £2.08
47	HV504 45 99-01 Available to backorder	Washer (For 970626001)	£2.83 £2.36
48	HV732 21 16-01 Available to backorder	Lock Nut (For 970626001)	£1.79 £1.49
49	HV506 55 97-01 Available to backorder	Washer (For 970626001)	£2.30 £1.92
