Husqvarna LC 48VE - Mower Deck & Cutting Deck

Description

Husqvarna LC 48VE

Model Year -

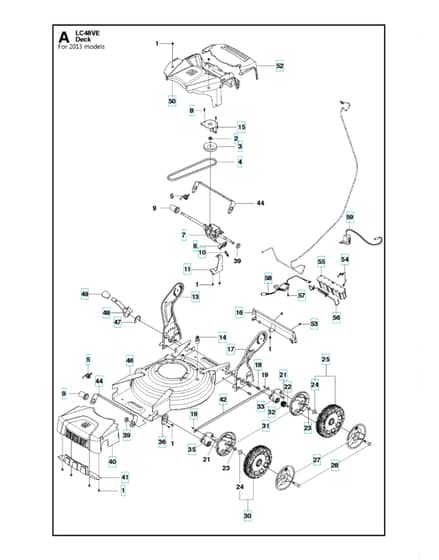

Mower Deck & Cutting Deck - Parts Diagram

	Part No.	Details
4	HV501 98 66-01 Available to backorder	Belt	£22.80 £19.00
5	HV522 02 46-01 Available to backorder	Spring	£16.04 £13.37
8	HV502 43 53-01 Available to backorder	Screw Itxpant	£1.44 £1.20
9	HV522 02 40-01 Available to backorder	Nut	£3.97 £3.31
10	HV504 04 87-01 Available to backorder	Spring	£6.02 £5.02
13	HV504 00 00-03 Available to backorder	Handle Support	£39.10 £32.58
14	HV531 20 58-48 Available to backorder	Connector	£9.62 £8.02
16	HV504 64 15-01 Available to backorder	Skid Plate	£39.73 £33.11
17	HV504 00 32-03 Available to backorder	Handle Support	£39.10 £32.58
19	HV735 31 09-21 Available to backorder	E-Clip	£1.01 £0.84
21	HV504 62 50-01 Available to backorder	Shaft	£2.44 £2.03
22	HV504 70 28-01 Available to backorder	Lock Ring	£1.15 £0.96
24	HV738 21 01-04 Available to backorder	Ball Bearing	£6.31 £5.26
27	HV544 44 39-01 Available to backorder	Hub Cap	£9.62 £8.02
28	HV544 45 34-01 Available to backorder	Screw	£8.34 £6.95
31	HV504 62 41-01 Available to backorder	Dust Cover	£14.10 £11.75
32	HV544 34 23-01 Available to backorder	Pinion	£10.57 £8.81
35	HV504 70 98-02 Available to backorder	Link Arm Assy	£36.14 £30.12
36	HV504 62 49-01 Available to backorder	Bracket	£9.62 £8.02
39	HV505 52 10-01 Available to backorder	Nut	£7.06 £5.88
47	HV735 31 36-21 Available to backorder	Lockwasher	£2.17 £1.81
48	HV504 83 82-01 Available to backorder	Lever	£10.26 £8.55
50	HV505 10 94-02 Available to backorder	Rear Cover	£32.70 £27.25
53	HV502 43 52-01 Available to backorder	Screw Itxpantt	£1.79 £1.49
55	HV515 99 63-01 Available to backorder	Battery	£75.84 £63.20
