Husqvarna LC 451S - Mower Deck & Cutting Deck

Description

Husqvarna LC 451S

Model Year -

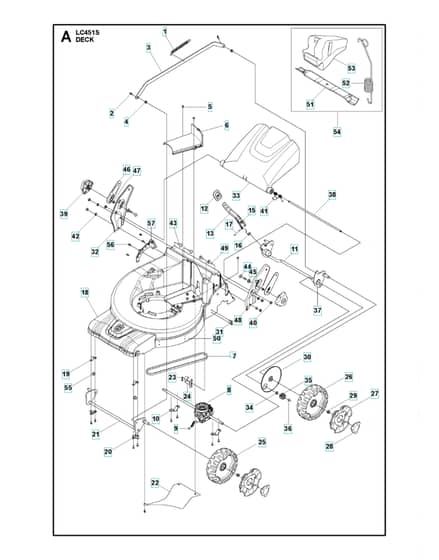

Mower Deck & Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV531 20 57-15 Available to backorder	Spring	£9.12 £7.60
2	HV531 20 66-53 Available to backorder	Pin	£3.88 £3.23
3	HV587 19 85-01 Available to backorder	Rod	£36.22 £30.18
4	HV501 62 25-01 Available to backorder	Bushing	£5.82 £4.85
5	HV531 20 73-85 Available to backorder	Screw	£1.82 £1.52
6	HV531 21 32-25 Available to backorder	Cover	£7.20 £6.00
7	HV587 63 05-01 Available to backorder	Belt	£24.80 £20.67
8	HV587 78 05-01 Available to backorder	Gearbox Assyto Be Used On Lc451S Before Serial Number 20202100005	£169.56 £141.30
9	HV586 91 94-01 Available to backorder	Spring	£4.40 £3.67
11	HV587 19 80-02 Available to backorder	Axle	£89.24 £74.37
12	HV581 74 67-01 Available to backorder	Knob	£6.20 £5.17
15	HV587 19 84-01 Available to backorder	Pin	£3.88 £3.23
16	HV583 95 13-02 Available to backorder	Spring	£4.40 £3.67
17	HV587 19 82-01 Available to backorder	Pin	£5.68 £4.73
18	HV587 19 75-04 Available to backorder	Chassis	£328.80 £274.00
19	HV501 07 89-01 Available to backorder	Support	£7.12 £5.93
20	HV591 16 26-01 Available to backorder	Support	£6.46 £5.38
21	HV587 19 81-01 Available to backorder	Axle	£79.18 £65.98
22	HV501 96 60-01 Available to backorder	Deflector	£36.58 £30.48
23	HV732 25 14-01 Available to backorder	Hexagon Locking Nut	£2.76 £2.30
24	HV588 27 65-01 Available to backorder	Stop	£8.40 £7.00
25	HV584 61 16-01 Available to backorder	Wheel Assy	£26.44 £22.03
26	HV584 14 22-01 Available to backorder	Wheel Assy	£31.74 £26.45
27	HV584 15 93-01 Available to backorder	Hub Cap	£7.76 £6.47
28	HV584 15 94-01 Available to backorder	Nut Cap	£4.92 £4.10
29	HV504 85 78-01 Available to backorder	Nut	£3.62 £3.02
30	HV587 19 79-01 Available to backorder	Dust Cover	£9.72 £8.10
31	HV725 23 31-51 Available to backorder	Screw	£1.82 £1.52
32	HV587 19 67-02 Available to backorder	Handle Support	£41.40 £34.50
33	HV587 19 72-01 Available to backorder	Hatch	£43.36 £36.13
35	HV544 34 23-01 Available to backorder	Pinion	£10.80 £9.00
37	HV584 40 46-01 Available to backorder	Ball Bearing	£6.36 £5.30
38	HV587 19 73-01 Available to backorder	Rod	£10.73 £8.94
39	HV587 23 72-01 Available to backorder	Knob	£13.58 £11.32
40	HV732 21 18-01 Available to backorder	Lock Nut	£2.40 £2.00
41	HV501 32 25-01 Available to backorder	Spring	£5.44 £4.53
42	HV734 11 64-01 Available to backorder	Washer	£2.34 £1.95
43	HV588 87 75-01 Available to backorder	Screw	£1.82 £1.52
44	HV588 15 73-01 Available to backorder	Bolt	£1.87 £1.56
45	HV588 15 74-01 Available to backorder	Washer	£2.34 £1.95
46	HV587 78 04-01 Available to backorder	Washer	£5.44 £4.53
47	HV731 43 18-01 Available to backorder	Hexagon Thin Nut	£1.96 £1.63
48	HV587 19 68-02 Available to backorder	Handle Support	£31.72 £26.43
49	HV531 20 49-21 Available to backorder	Screw	£5.04 £4.20
50	HV584 80 53-01 Available to backorder	Label	£3.76 £3.13
51	HV589 57 22-20 Available to backorder	Mower Blade	£33.96 £28.30
52	HV531 20 58-31 Available to backorder	Mulch Plug	£5.32 £4.43
53	HV531 21 32-26 Available to backorder	Plug	£29.46 £24.55
55	HV590 37 36-01 Available to backorder	Bushing	£30.40 £25.33
56	HV531 20 78-56 Available to backorder	Screw	£1.56 £1.30
57	HV589 93 49-01 Available to backorder	Height Adjuster	£12.28 £10.23
