Husqvarna LC 353VI CLASSIC - Mower Deck & Cutting Deck

Description

Husqvarna LC 353VI CLASSIC

Model Year -

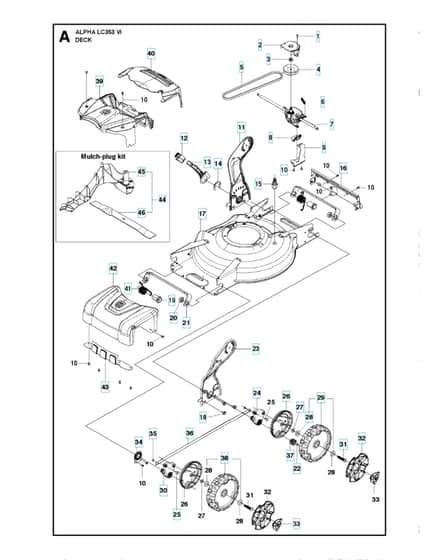

Mower Deck & Cutting Deck - Parts Diagram

	Part No.	Details
1	HV502 43 53-01 Available to backorder	Screw Itxpant	£1.44 £1.20
5	HV501 98 66-05 Available to backorder	Belt	£24.43 £20.36
6	HV504 04 87-01 Available to backorder	Spring	£6.02 £5.02
10	HV502 43 52-01 Available to backorder	Screw Itxpantt	£1.79 £1.49
11	HV504 00 00-04 Available to backorder	Handle Support	£57.67 £48.06
12	HV522 59 85-01 Available to backorder	Knob	£8.98 £7.48
13	HV504 83 82-01 Available to backorder	Lever	£10.26 £8.55
14	HV735 31 36-21 Available to backorder	Lockwasher	£2.17 £1.81
15	HV531 20 58-48 Available to backorder	Connector	£9.62 £8.02
16	HV504 64 15-01 Available to backorder	Skid Plate	£39.73 £33.11
17	HV505 39 70-03 Available to backorder	Chassis	£197.04 £164.20
18	HV506 55 83-02 Available to backorder	Screw Ehhft	£3.59 £2.99
19	HV522 02 40-01 Available to backorder	Nut	£3.97 £3.31
20	HV505 52 10-01 Available to backorder	Nut	£7.06 £5.88
22	HV504 70 28-01 Available to backorder	Lock Ring	£1.15 £0.96
23	HV504 00 32-04 Available to backorder	Handle Support	£58.32 £48.60
24	HV504 70 98-04 Available to backorder	Link Arm Assy	£28.84 £24.03
25	HV504 62 50-01 Available to backorder	Shaft	£2.44 £2.03
26	HV504 62 41-01 Available to backorder	Dust Cover	£14.10 £11.75
28	HV738 21 01-04 Available to backorder	Ball Bearing	£6.31 £5.26
29	HV584 14 22-01 Available to backorder	Wheel Assy	£32.83 £27.36
30	HV504 70 98-02 Available to backorder	Link Arm Assy	£36.14 £30.12
31	HV574 25 94-01 Available to backorder	Screw	£8.34 £6.95
32	HV584 15 93-01 Available to backorder	Hub Cap	£7.70 £6.42
33	HV584 15 94-01 Available to backorder	Nut Cap	£5.09 £4.24
34	HV504 62 49-01 Available to backorder	Bracket	£9.62 £8.02
35	HV735 31 09-21 Available to backorder	E-Clip	£1.01 £0.84
36	HV584 81 07-02 Available to backorder	Rod	£25.00 £20.83
37	HV544 34 23-01 Available to backorder	Pinion	£10.57 £8.81
38	HV584 61 16-01 Available to backorder	Wheel Assy	£27.35 £22.79
39	HV505 20 19-02 Available to backorder	Rear Cover	£33.31 £27.76
41	HV522 02 46-01 Available to backorder	Spring	£16.04 £13.37
42	HV583 90 18-01 Available to backorder	Front Cover Assy	£40.82 £34.02
43	HV502 62 54-02 Available to backorder	Skid Plate	£51.19 £42.66
45	HV505 15 14-01 Available to backorder	Mulch Plug	£59.59 £49.66
46	HV502 88 14-10 Available to backorder	Mower Blade	£35.42 £29.52
